Iscar
3400601

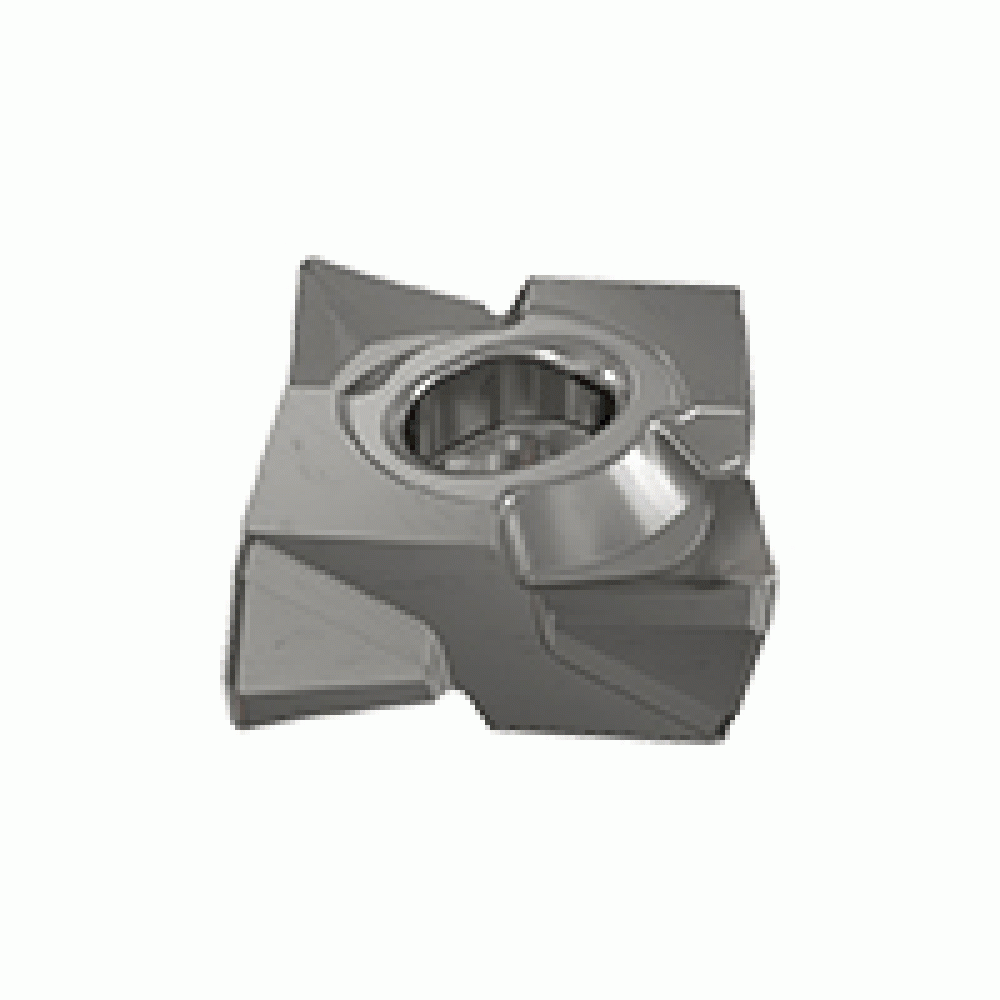

CXGG 090402-M3N-P IC20
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | CXGG |
| Long Description | CXGG 80° double-sided positive and polished rake inserts with a highly positive round and sharp edge. To be used under medium machining conditions on aluminum alloys and other non-ferrous materials. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | CXGG 80° Double-Sided and Double-Positive Polished rhombic inserts |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.21 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | CXGG-M3N-P |
| Weight (OZ) | 0.21164 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
