Iscar
3401336
EBI-4 750-3.0WVF6 IC608
Specifications

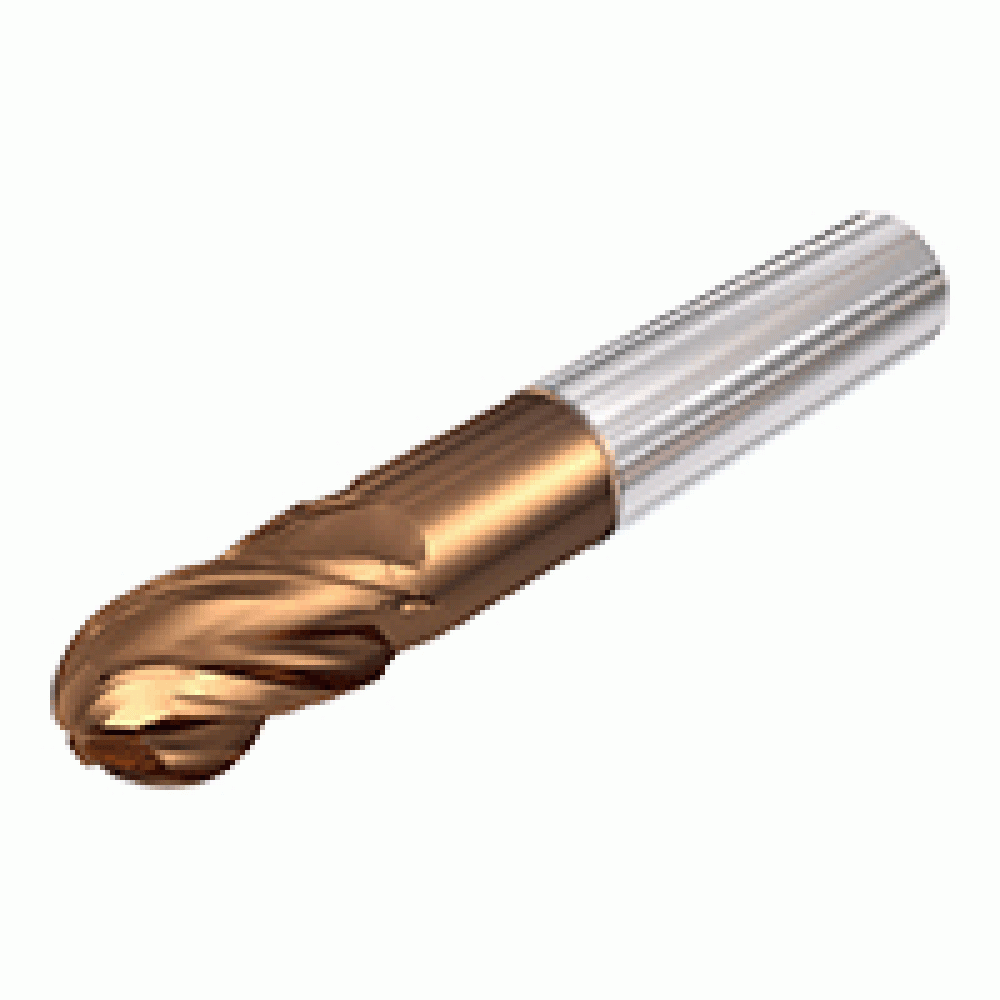

| Short Description | ISCAR 3/4x3x6 4F BALL CARBIDE E.M. TiAlCN COAT WELDON SHK |
|---|---|
| Shank Diameter | 0.7500" (19.050 mm) (3/4 ) |
| Overall Length | 6.0000" (152.400 mm) (6) |
| Long Description | 4 flute ball nose endmills with and without relieved necks |
| Flute Length | 3.0000" (76.200 mm) (3) |
| Diameter | 0.7500" (19.050 mm) (3/4 ) |
| APP1Name | Helical Interpolation |
| FamilyName | EBI-4-VF |
| COO | USA |
| Coating | AlTiCrSiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
