Iscar
3407008
ECI-6 312-1C0VF3 IC608
Specifications

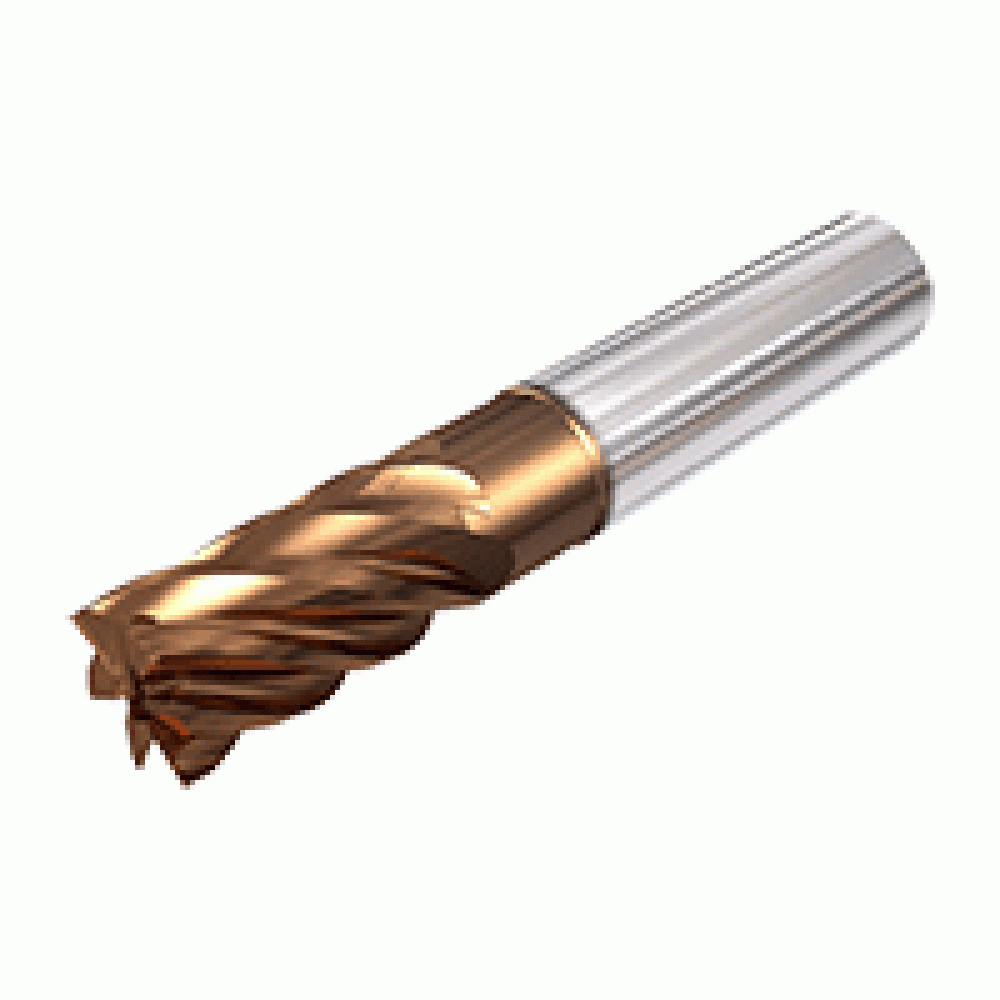

| Short Description | ISCAR 5/16x1x3 6F CARBIDE END-MILL TiAlCN COAT CYL SHK |
|---|---|
| Shank Diameter | 0.3120" |
| Overall Length | 3.0000" (76.200 mm) (3) |
| Long Description | 6 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.3120" |
| Flute Length | 1.0000" (25.400 mm) (1) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-6-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
