Iscar
3407216
ECI-6 1-1.5/5C0VF7 IC608
Specifications

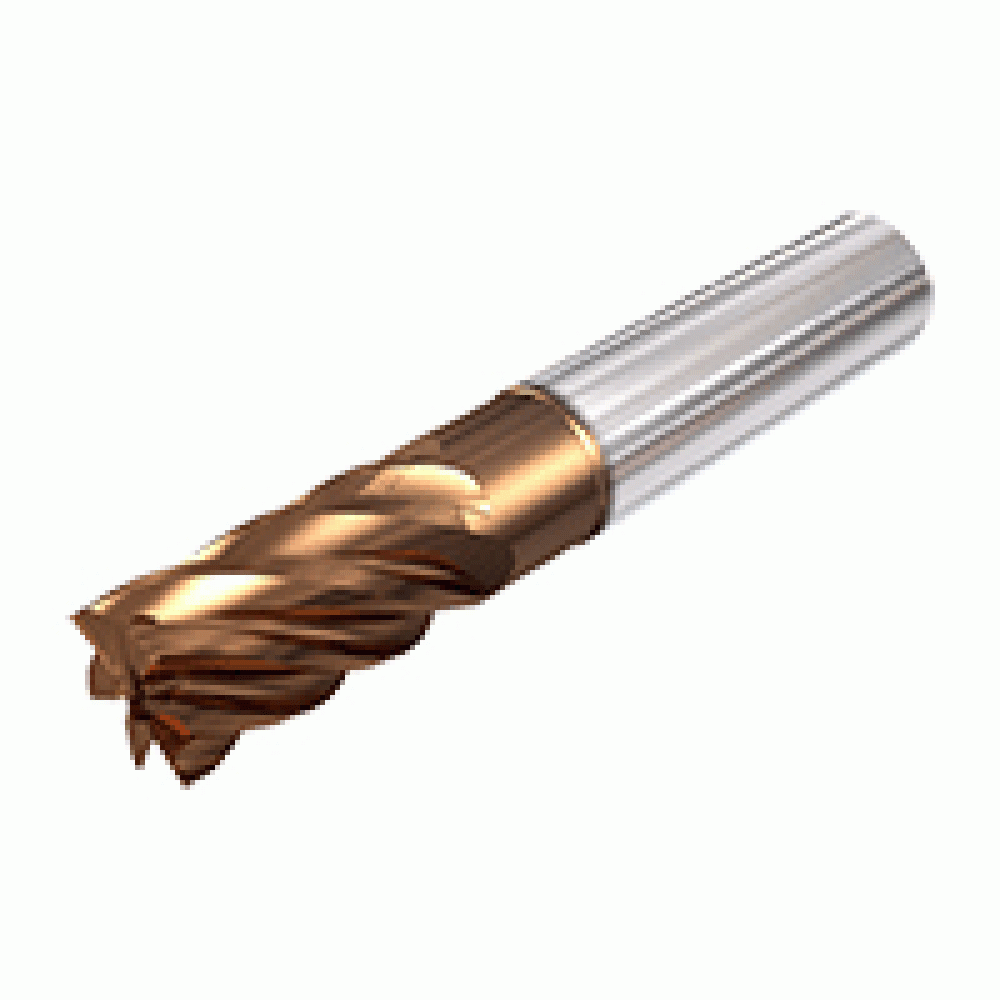

| Short Description | ISCAR 1x1.1/2x7 RCH=5 6F CARBIDE E.MILL TiAlCN COAT CYL SHK |
|---|---|
| Shank Diameter | 1.0000" (25.400 mm) (1) |
| Overall Length | 7.0000" (177.800 mm) (7) |
| Long Description | 6 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 1.0000" (25.400 mm) (1) |
| Flute Length | 1.5000" (38.100 mm) (1 1/2) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-6-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
