Iscar
3408244
ECI-5 .375-.5W0VF2 IC608
Specifications

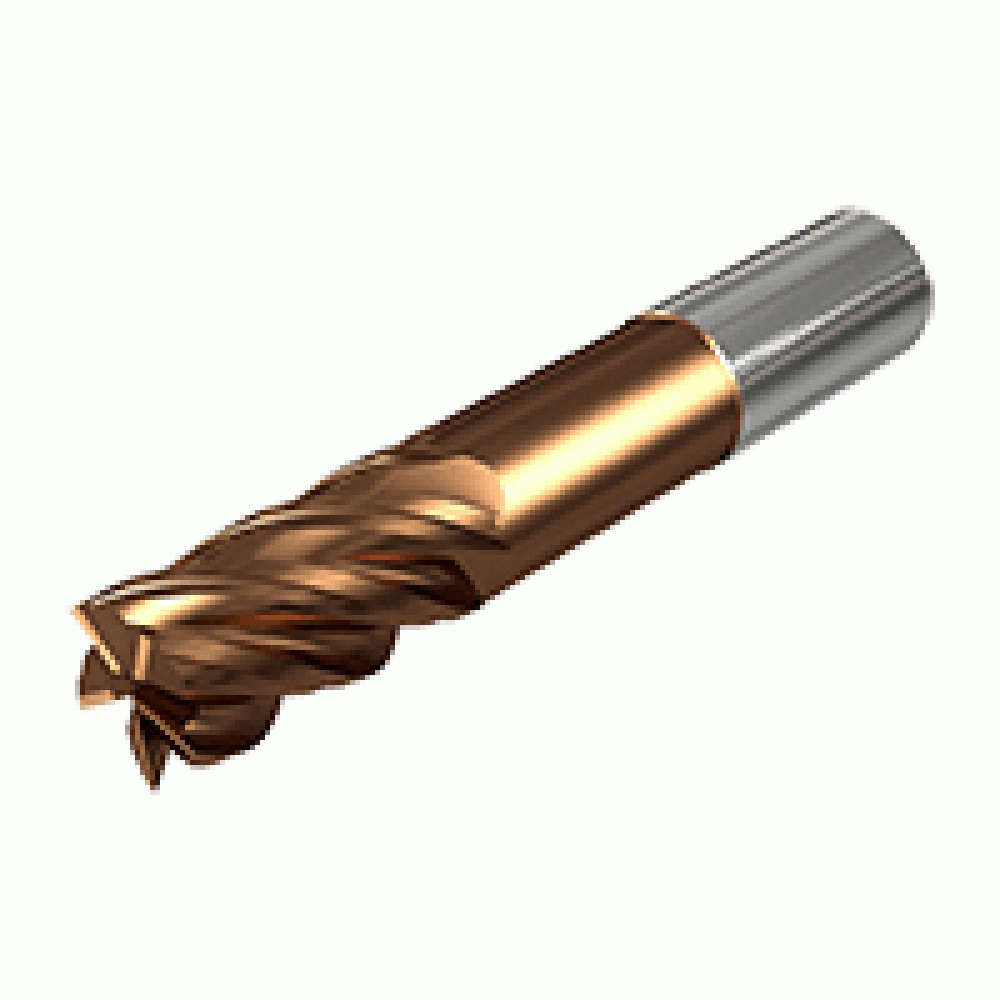

| Short Description | ISCAR 3/8x1/2x2 5F CARBIDE END-MILL TiAlCN COAT WELDON SHK |
|---|---|
| Shank Diameter | 0.3750" (3/8 ) |
| Overall Length | 2.0000" (50.800 mm) (2) |
| Long Description | 5 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.3750" (3/8 ) |
| Flute Length | 0.5000" (12.700 mm) (1/2 ) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-5-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
