Iscar
3408379
ECI-5 .75-1.25/2.WVF4 IC608
Specifications

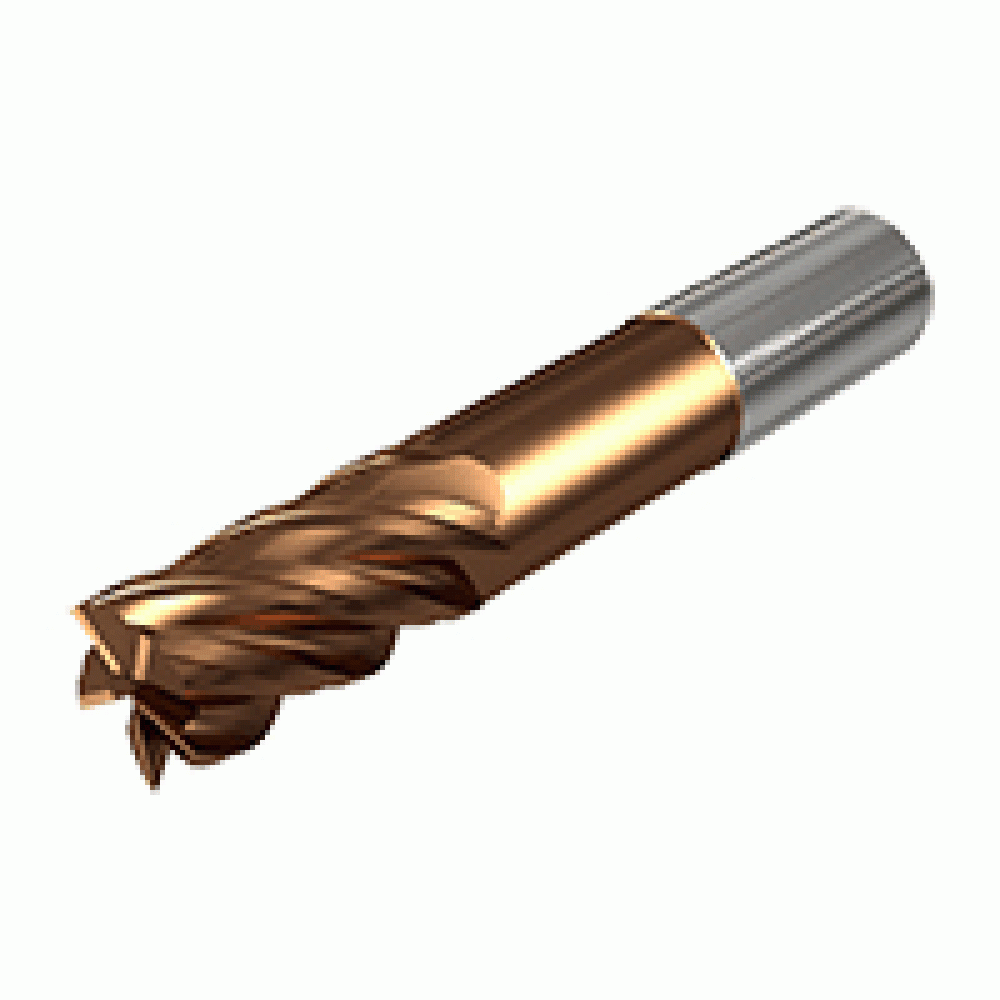

| Short Description | ISCAR 3/4x1.1/4x4 RCH=2 5F CARB E.M. TiAlCN COAT WELDON SHK |
|---|---|
| Shank Diameter | 0.7500" (19.050 mm) (3/4 ) |
| Overall Length | 4.0000" (101.600 mm) (4) |
| Long Description | 5 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.7500" (19.050 mm) (3/4 ) |
| Flute Length | 1.2500" (31.750 mm) (1 1/4) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-5-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 17.46691 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
