Iscar
3408466

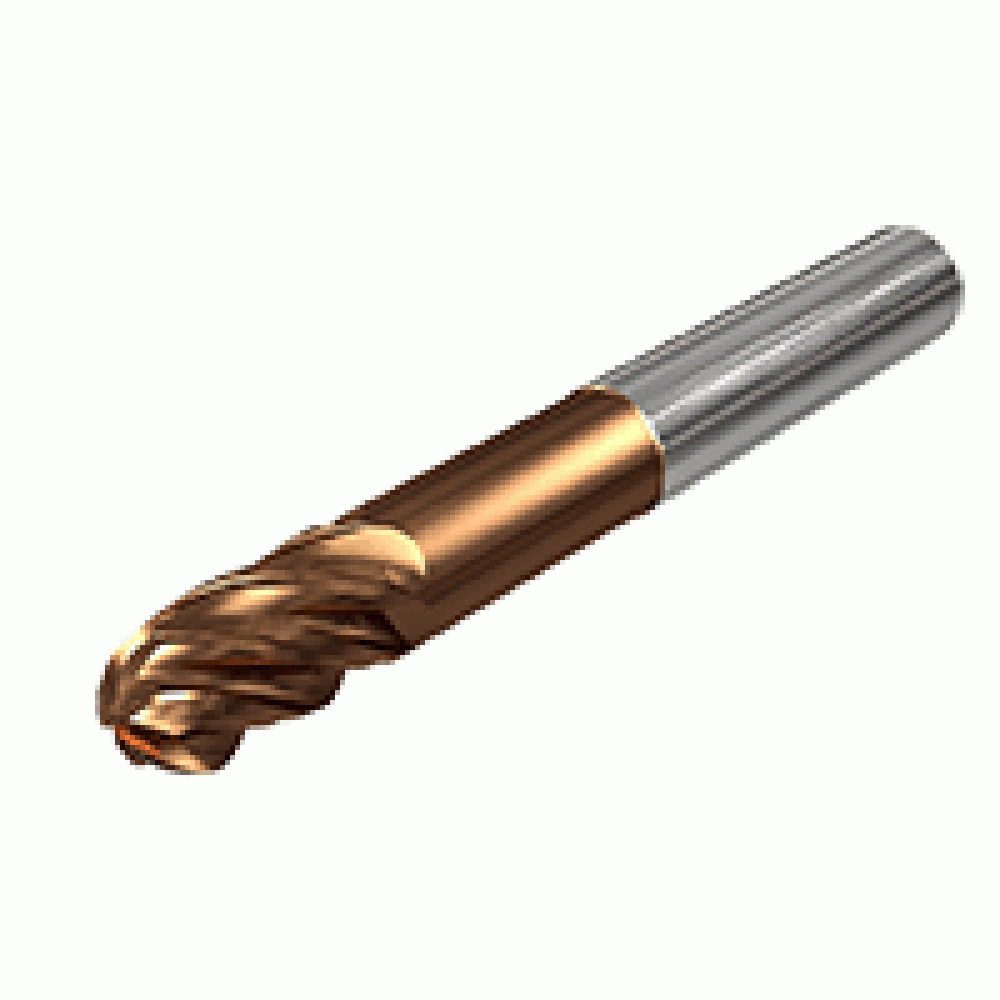

EBI-5 .25-.5WVF2 IC608
Specifications
| Short Description | ISCAR 1/4x1/2x2 5F BALL CARB E.M. TiAlCN COAT WELDON SHK |
|---|---|
| Shank Diameter | 0.2500" (6.350 mm) (1/4 ) |
| Overall Length | 2.0000" (50.800 mm) (2) |
| Long Description | 5 flute, ball nose endmills with and without relieved necks |
| Flute Length | 0.5000" (12.700 mm) (1/2 ) |
| Diameter | 0.2500" (6.350 mm) (1/4 ) |
| APP1Name | Helical Interpolation |
| FamilyName | EBI-5-VF |
| COO | USA |
| Coating | AlTiCrSiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 1.02399 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
