Iscar
3408470
EBI-5 .375-.75/2.13WVF4 IC608
Specifications

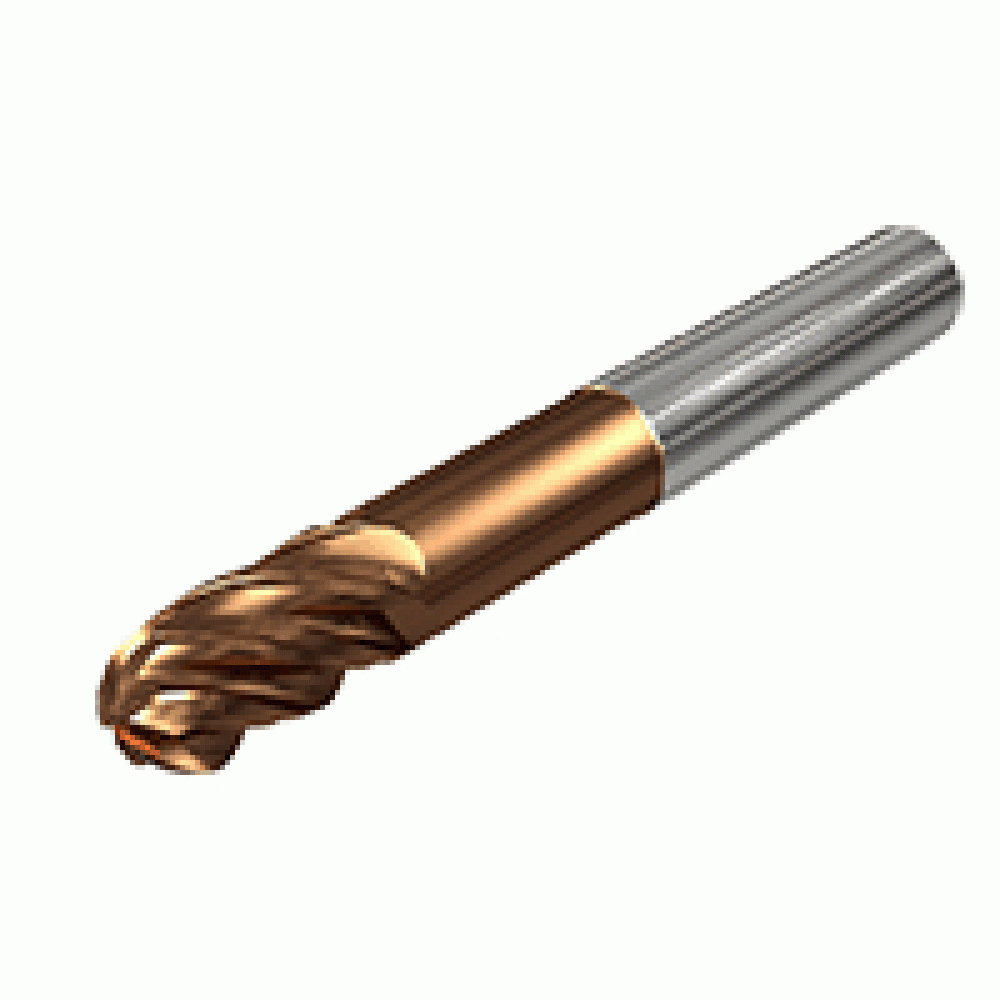

| Short Description | ISCAR 3/8x3/4x4 RCH=2.1/8 5F BALL CARB E.M. TiAlCN WELDON |
|---|---|
| Shank Diameter | 0.3750" (3/8 ) |
| Overall Length | 4.0000" (101.600 mm) (4) |
| Long Description | 5 flute, ball nose endmills with and without relieved necks |
| Flute Length | 0.7500" (19.050 mm) (3/4 ) |
| Diameter | 0.3750" (3/8 ) |
| APP1Name | Helical Interpolation |
| FamilyName | EBI-5-VF |
| COO | USA |
| Coating | AlTiCrSiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 4.36631 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
