Iscar
3408480
EBI-5 .5-1.63WVF4 IC608
Specifications

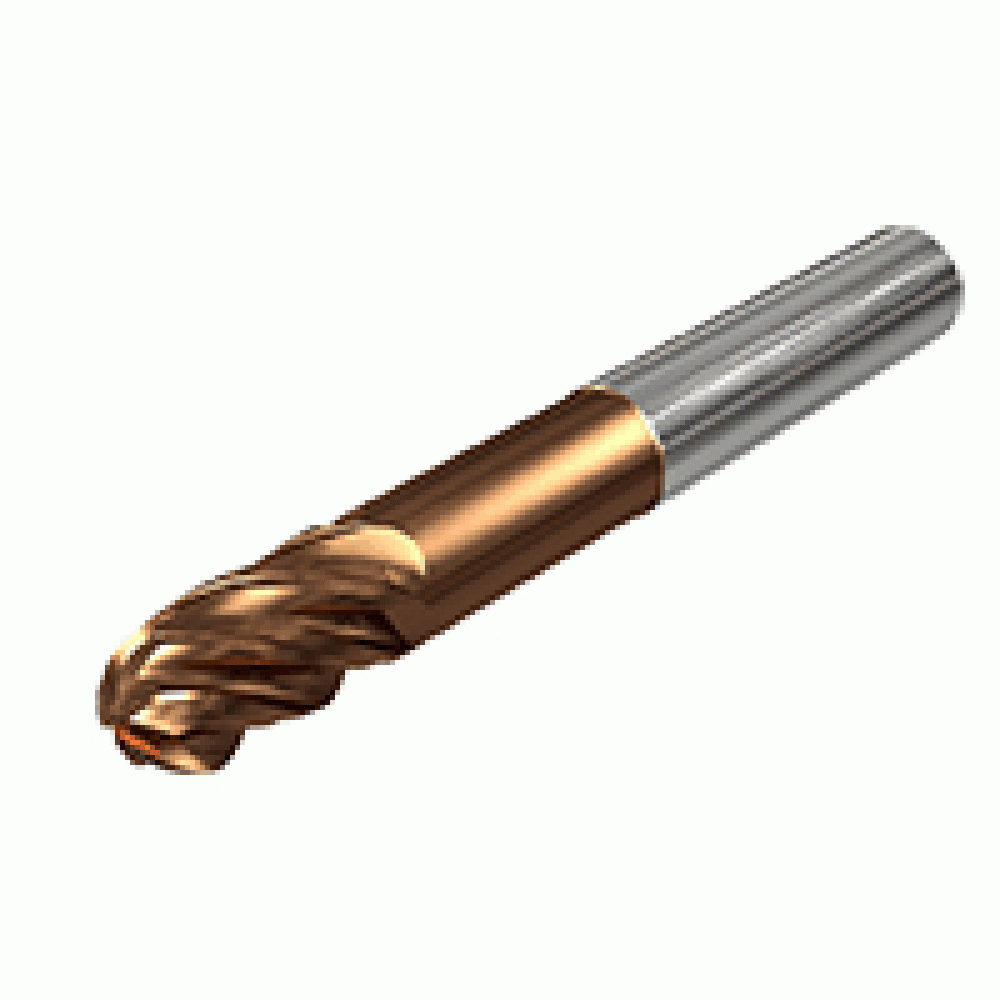

| Short Description | ISCAR 1/2x1.5/8x4 5F BALL CARB E.M. TiAlCN COAT WELDON SHK |
|---|---|
| Shank Diameter | 0.5000" (12.700 mm) (1/2 ) |
| Overall Length | 4.0000" (101.600 mm) (4) |
| Long Description | 5 flute, ball nose endmills with and without relieved necks |
| Flute Length | 1.6250" (41.275 mm) (1 5/8) |
| Diameter | 0.5000" (12.700 mm) (1/2 ) |
| APP1Name | Helical Interpolation |
| FamilyName | EBI-5-VF |
| COO | USA |
| Coating | AlTiCrSiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 8.19347 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
