Iscar
3408485

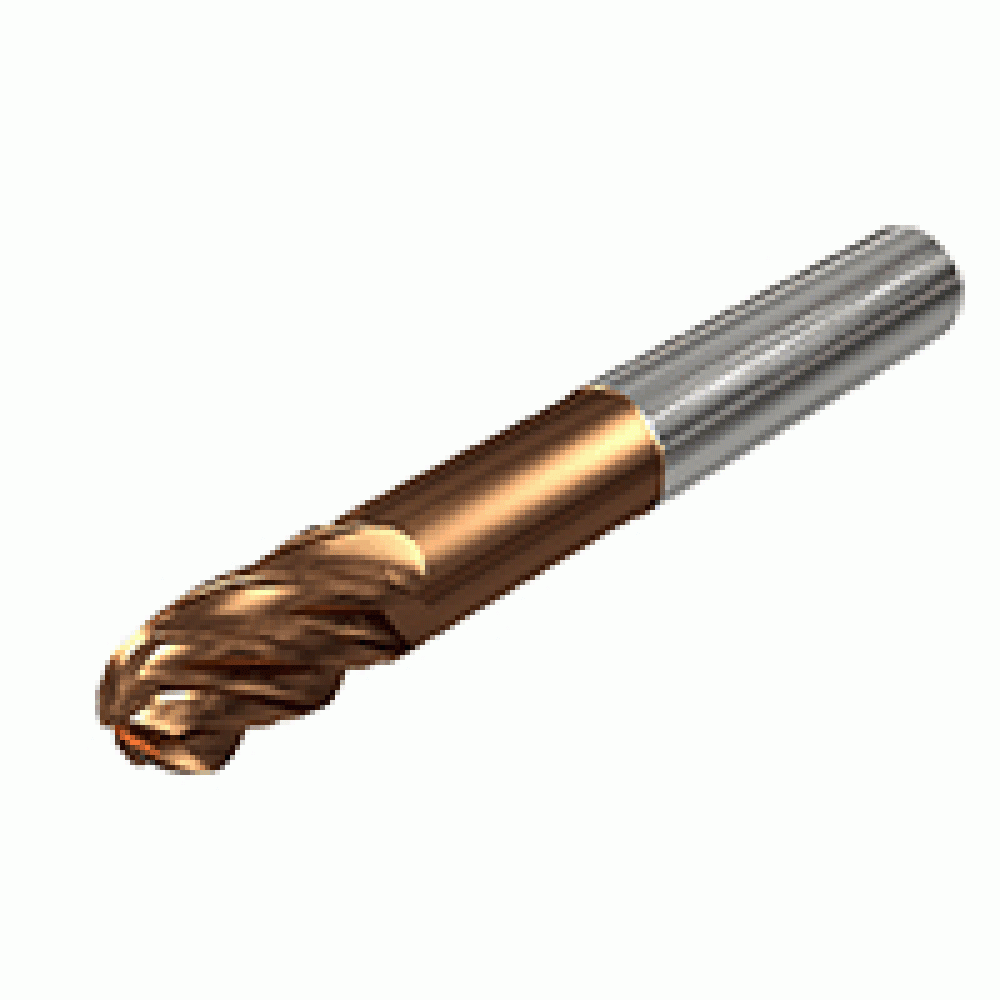

EBI-5 .625-1./2.WVF4 IC608
Specifications
| Short Description | ISCAR 5/8x1x4 RCH=2 5F BALL CARB E.M. TiAlCN WELDON SHK |
|---|---|
| Shank Diameter | 0.6250" (15.875 mm) (5/8 ) |
| Overall Length | 4.0000" (101.600 mm) (4) |
| Long Description | 5 flute, ball nose endmills with and without relieved necks |
| Flute Length | 1.0000" (25.400 mm) (1) |
| Diameter | 0.6250" (15.875 mm) (5/8 ) |
| APP1Name | Helical Interpolation |
| FamilyName | EBI-5-VF |
| COO | USA |
| Coating | AlTiCrSiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 12.12938 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
