Iscar
3408490
EBI-5 .625-3.WVF6 IC608
Specifications

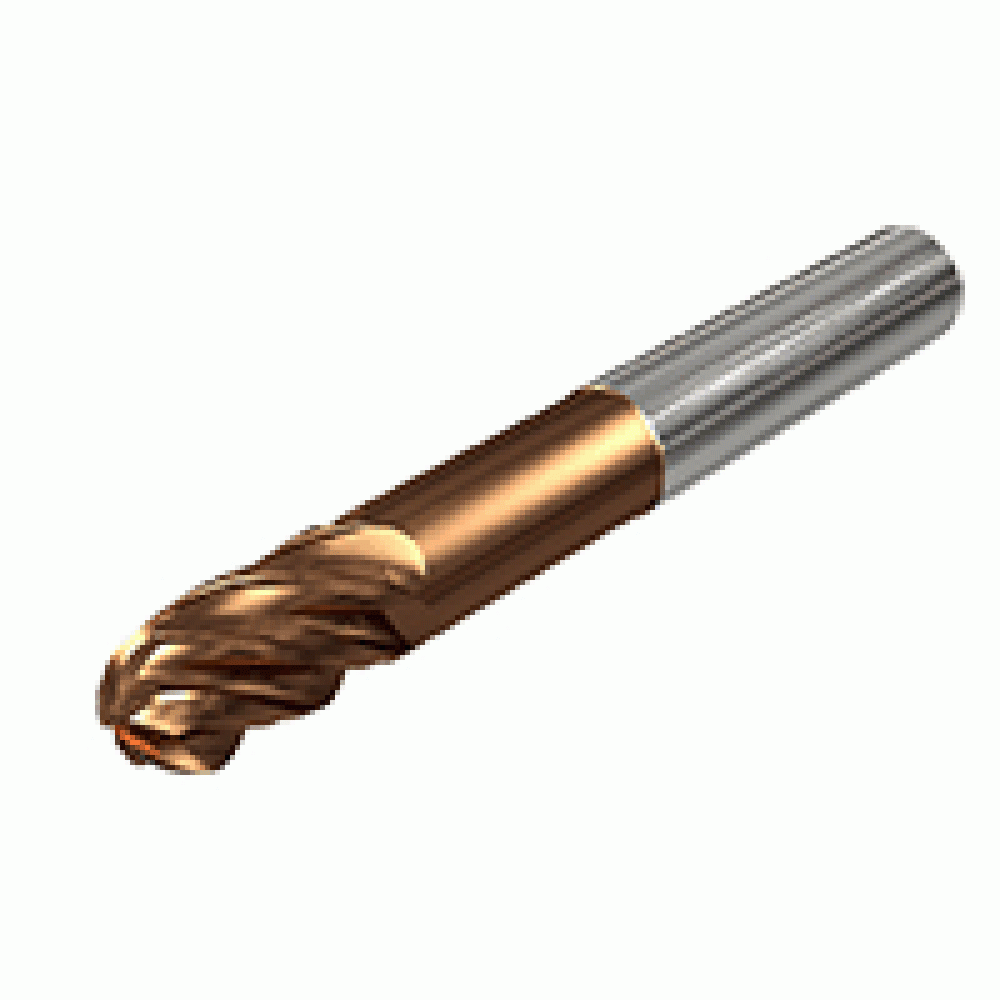

| Short Description | ISCAR 5/8x3x6 5F BALL CARBIDE E.M. TiAlCN COAT WELDON SHK |
|---|---|
| Shank Diameter | 0.6250" (15.875 mm) (5/8 ) |
| Overall Length | 6.0000" (152.400 mm) (6) |
| Long Description | 5 flute, ball nose endmills with and without relieved necks |
| Flute Length | 3.0000" (76.200 mm) (3) |
| Diameter | 0.6250" (15.875 mm) (5/8 ) |
| APP1Name | Helical Interpolation |
| FamilyName | EBI-5-VF |
| COO | USA |
| Coating | AlTiCrSiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 19.20448 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
