Iscar
3408499
EBI-5 1.-1.5/3.WVF5 IC608
Specifications

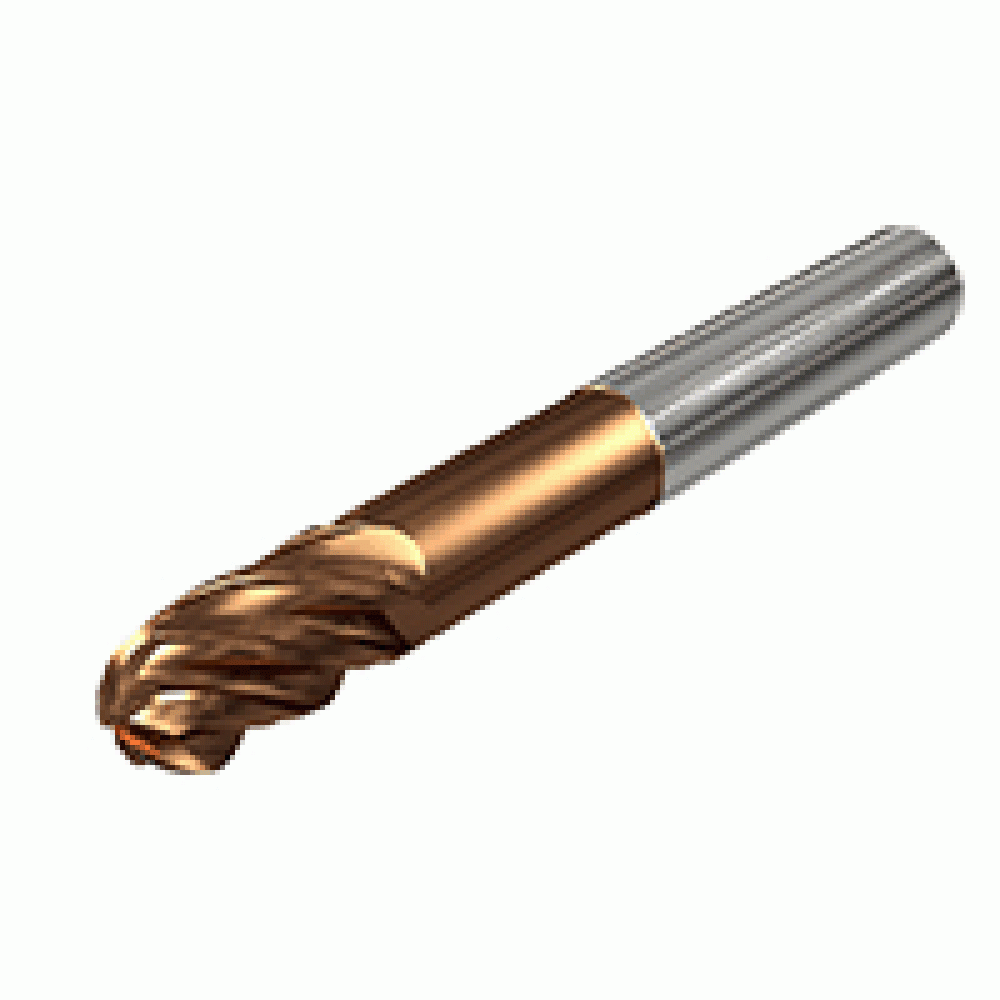

| Short Description | ISCAR 1x1.1/2x5 RCH=3 5F BALL CARB E.M. TiAlCN WELDON SHK |
|---|---|
| Shank Diameter | 1.0000" (25.400 mm) (1) |
| Overall Length | 5.0000" (127.000 mm) (5) |
| Long Description | 5 flute, ball nose endmills with and without relieved necks |
| Flute Length | 1.5000" (38.100 mm) (1 1/2) |
| Diameter | 1.0000" (25.400 mm) (1) |
| APP1Name | Helical Interpolation |
| FamilyName | EBI-5-VF |
| COO | USA |
| Coating | AlTiCrSiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
