Iscar
3411421

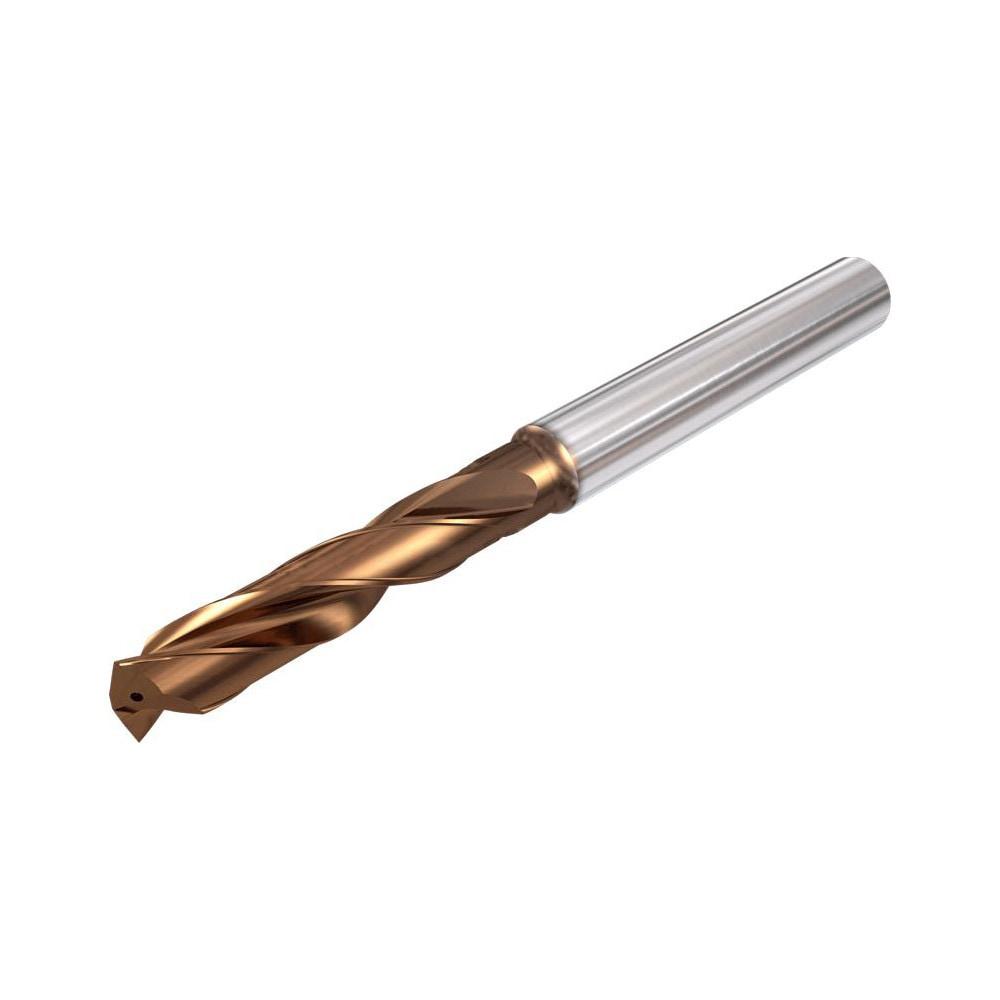

SCD0250-0964-0315 ACP3FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|
| Long Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR SCD0250-0964-0315-ACP3FL (IC608 = PVD AlTiCrSiN) |
| Shank Diameter | 0.3150" (8.000 mm) |
| Flute Length | 0.0400" (1.016 mm) |
| APP1Name | Drilling |
| Overall Length | 3.1100" |
| FamilyName | SCD-ACP3FL (3XD) |
| COO | USA |
| Weight (OZ) | 0.14109 |
| Diameter | 0.2500" (6.350 mm) (1/4 ) (E) |
| Width (Inch) | 3.62 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
