Iscar
3411441
SCD0750-1985-0787 ACP3FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|

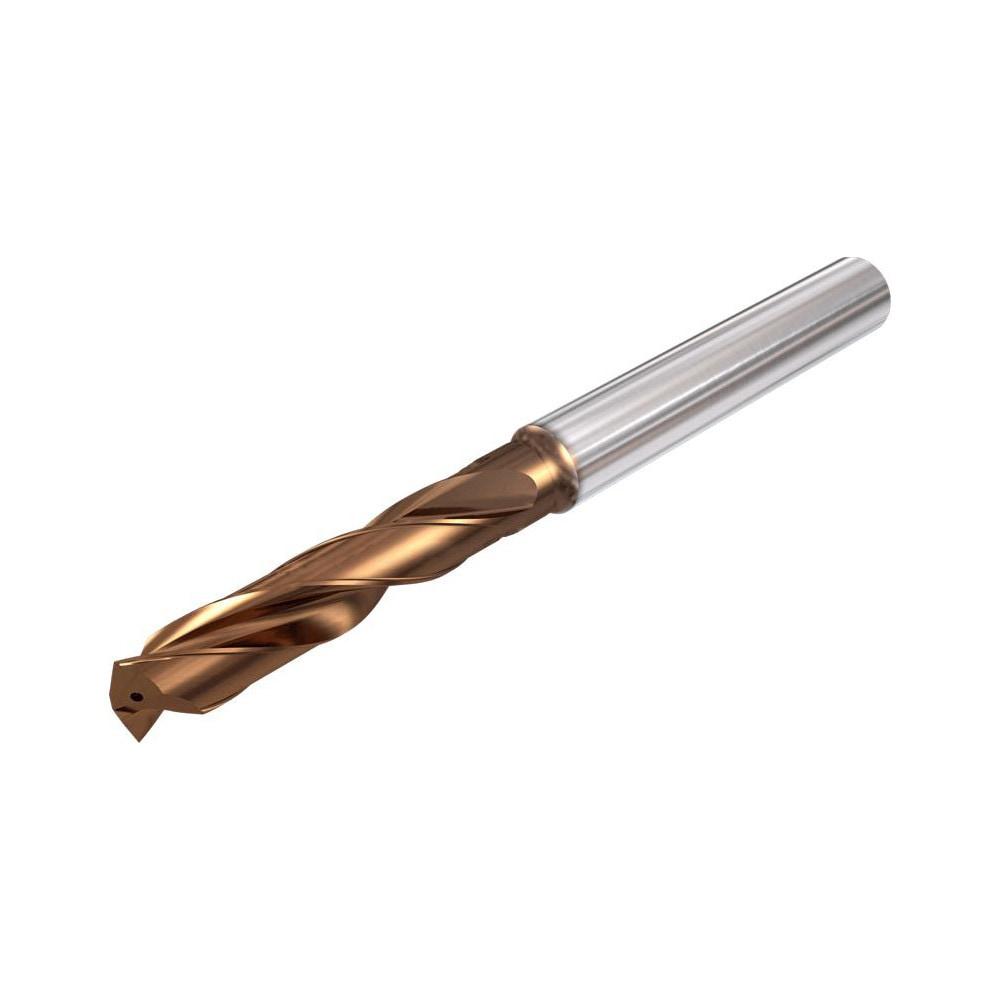

| Long Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR 3/4 3XD CARB/IC608 COOLANT DRILL 50x131 M20sh |
| Shank Diameter | 0.7870" |
| Flute Length | 0.1200" (3.048 mm) |
| APP1Name | Drilling |
| Overall Length | 5.1570" |
| FamilyName | SCD-ACP3FL (3XD) |
| COO | USA |
| Weight (OZ) | 1.48148 |
| Diameter | 0.7500" (19.050 mm) (3/4 ) |
| Width (Inch) | 5.67 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
