Iscar
3411443

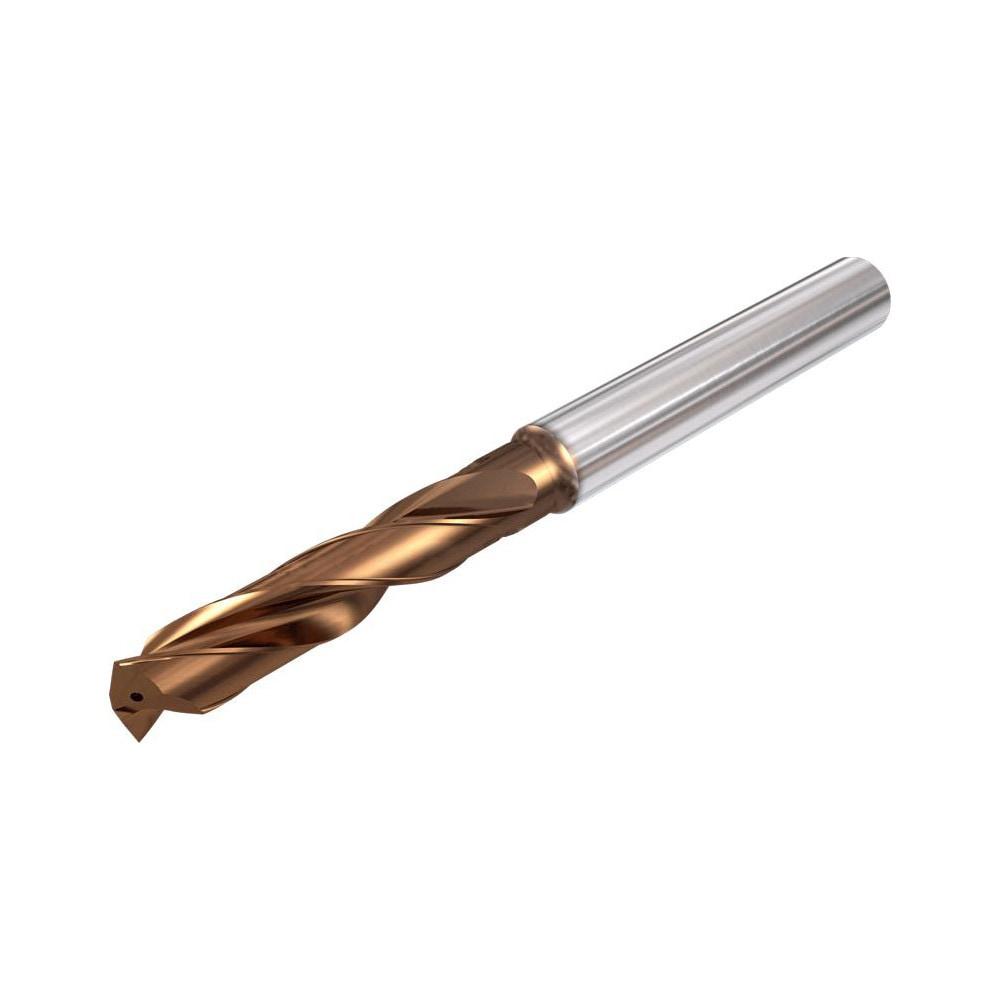

SCD0141-0892-0236 ACP5FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|
| Long Description | Solid carbide drills with coolant holes, drilling depth 5xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR 9/64 5XD CARB/IC608 COOLANT DRILL 28x66 M6sh |
| Shank Diameter | 0.2360" |
| Flute Length | 0.0225" (0.571 mm) |
| APP1Name | Drilling |
| Overall Length | 2.5980" |
| FamilyName | SCD-ACP5FL (5XD) |
| COO | USA |
| Weight (OZ) | 0.07055 |
| Diameter | 0.1410" |
| Width (Inch) | 3.11 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
