Iscar
3411468

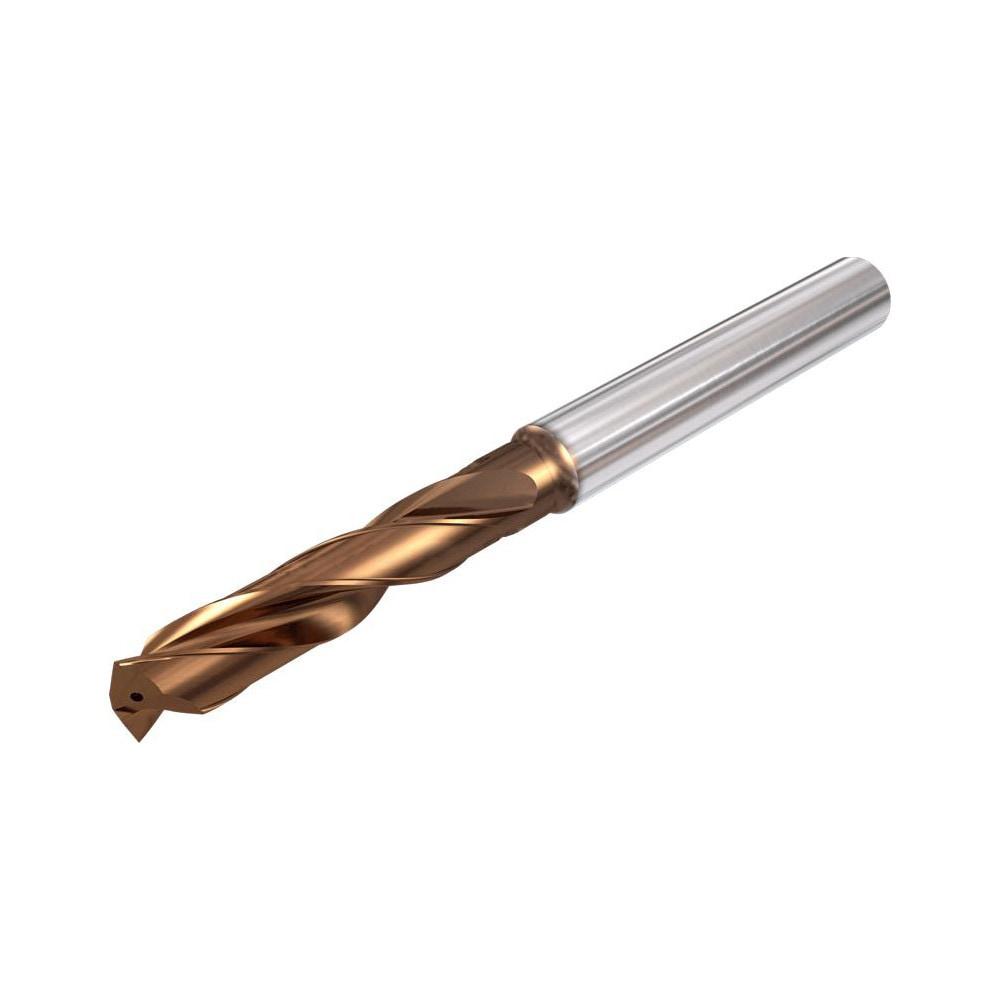

SCD0484-2305-0551 ACP5FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|
| Long Description | Solid carbide drills with coolant holes, drilling depth 5xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR SCD0484-2305-0551-ACP5FL (IC608 = PVD AlTiCrSiN) |
| Shank Diameter | 0.5510" |
| Flute Length | 0.0775" (1.969 mm) |
| APP1Name | Drilling |
| Overall Length | 4.8820" (124.003 mm) |
| FamilyName | SCD-ACP5FL (5XD) |
| COO | USA |
| Weight (OZ) | 0.63492 |
| Diameter | 0.4840" |
| Width (Inch) | 5.39 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
