Iscar
3411490

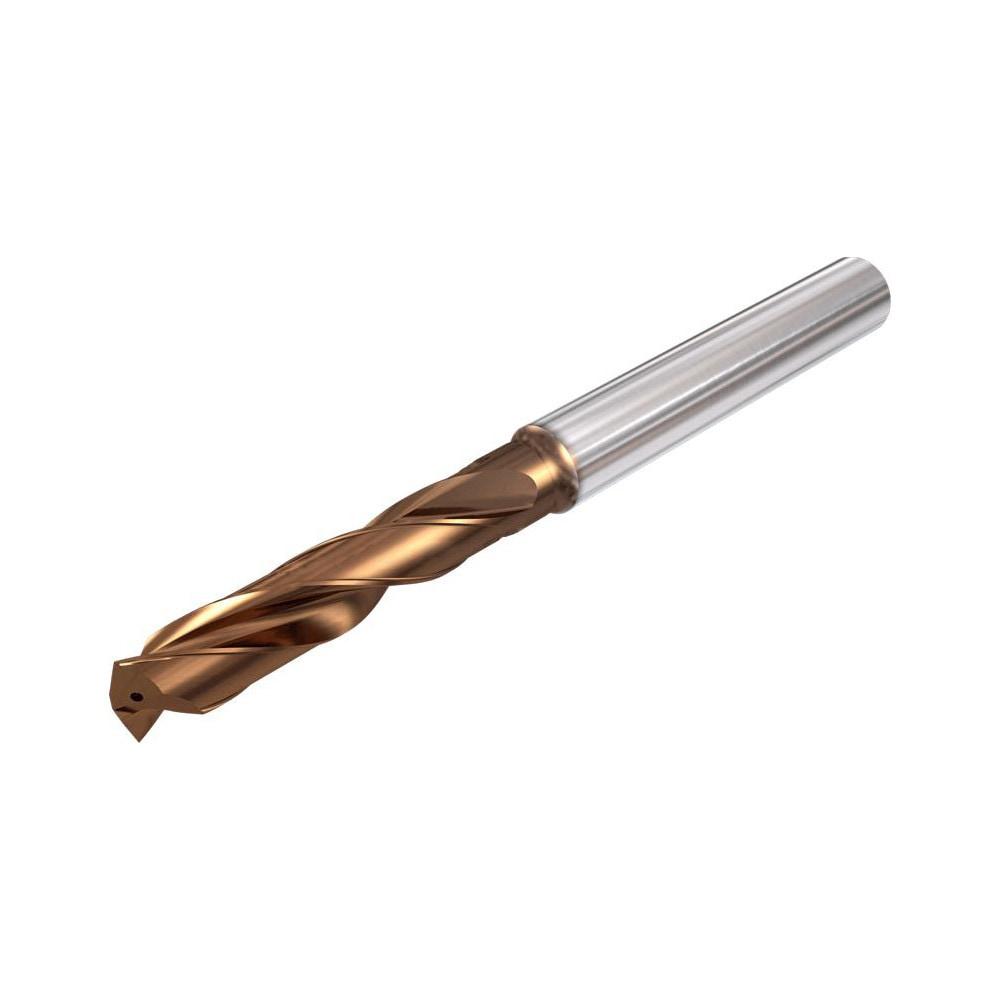

SCD 046-017-060 ACP3FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|
| Long Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR SCD-046-017-060-ACP3FL (IC608 = PVD AlTiCrSiN) |
| Shank Diameter | 0.2362" (6.000 mm) |
| Flute Length | 0.9449" (24.000 mm) |
| APP1Name | Drilling |
| Overall Length | 2.5984" (66.000 mm) |
| FamilyName | SCD-ACP3FL (3XD) |
| COO | USA |
| Weight (OZ) | 0.07055 |
| Diameter | 0.1811" (4.600 mm) |
| Width (Inch) | 3.11 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
