Iscar
3411559

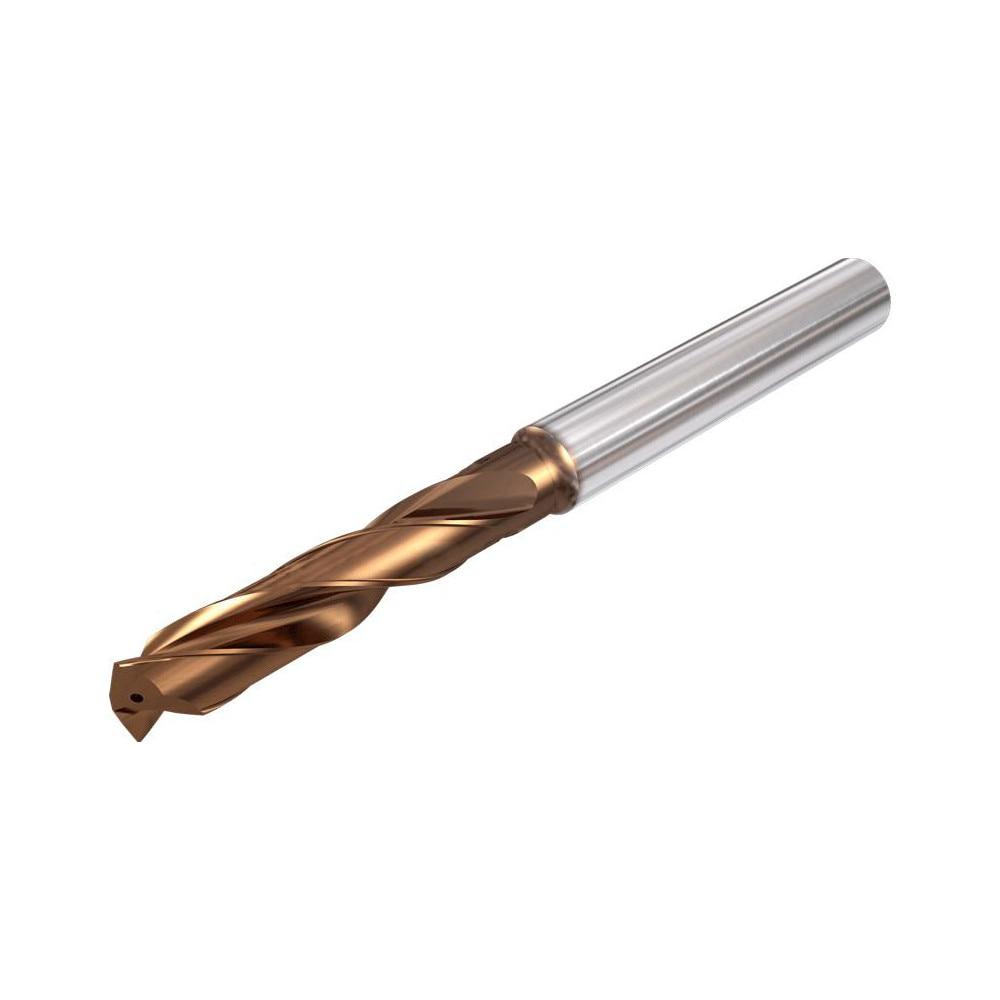

SCD 145-041-160 ACP3FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|
| Long Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR SCD-145-041-160-ACP3FL (IC608 = PVD AlTiCrSiN) |
| Shank Diameter | 0.6299" (16.000 mm) |
| Flute Length | 2.5591" (65.000 mm) |
| APP1Name | Drilling |
| Overall Length | 4.5276" (115.000 mm) |
| FamilyName | SCD-ACP3FL (3XD) |
| COO | USA |
| Weight (OZ) | 0.81129 |
| Diameter | 0.5709" (14.500 mm) |
| Width (Inch) | 5.04 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
