Iscar
3411949
ECI-7 437-1.0C0VF2.75 IC608
Specifications

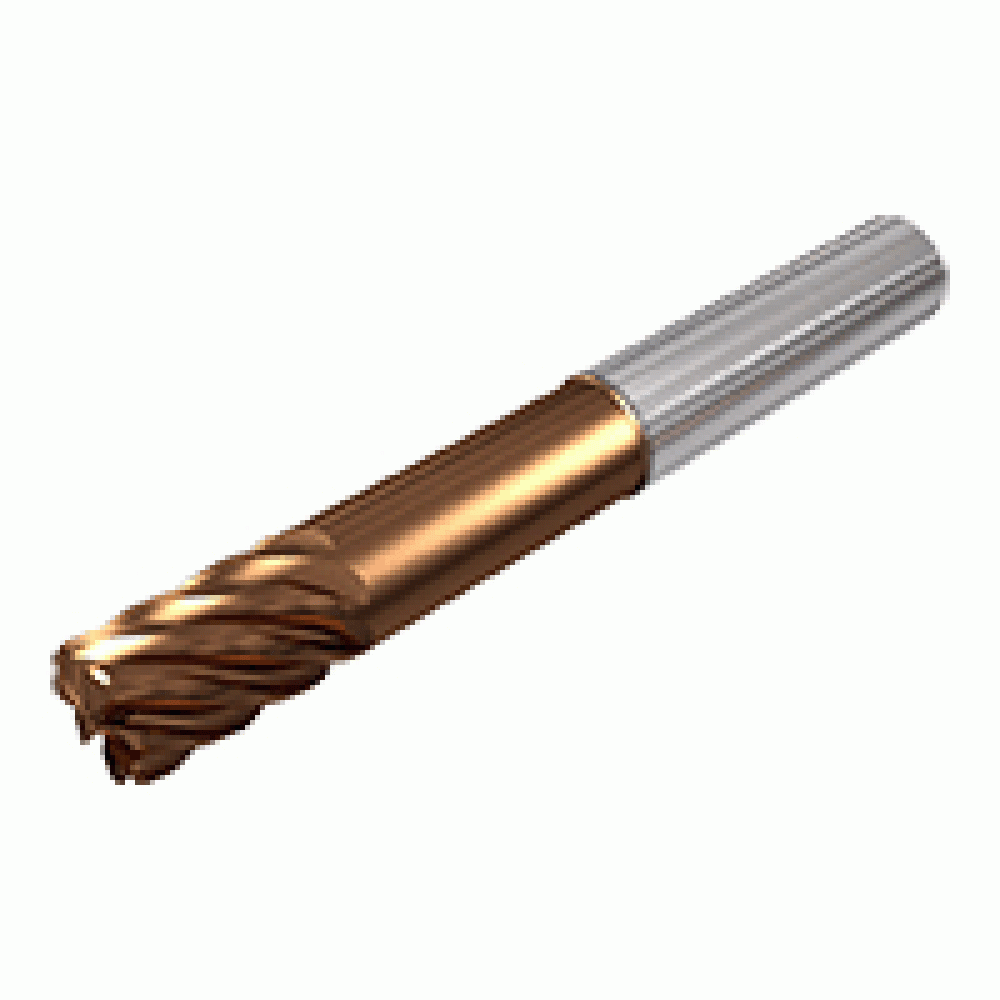

| Short Description | ISCAR 7/16x1x2.3/4 7F CARBIDE END-MILL TiAlCN COAT CYL SHK |
|---|---|
| Shank Diameter | 0.4370" (11.100 mm) |
| Overall Length | 2.7500" (69.850 mm) (2 3/4) |
| Long Description | 7 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.4370" (11.100 mm) |
| Flute Length | 1.0000" (25.400 mm) (1) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-7-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
