Iscar
3411963
ECI-7 500-875/1.38C0VF3 IC608
Specifications

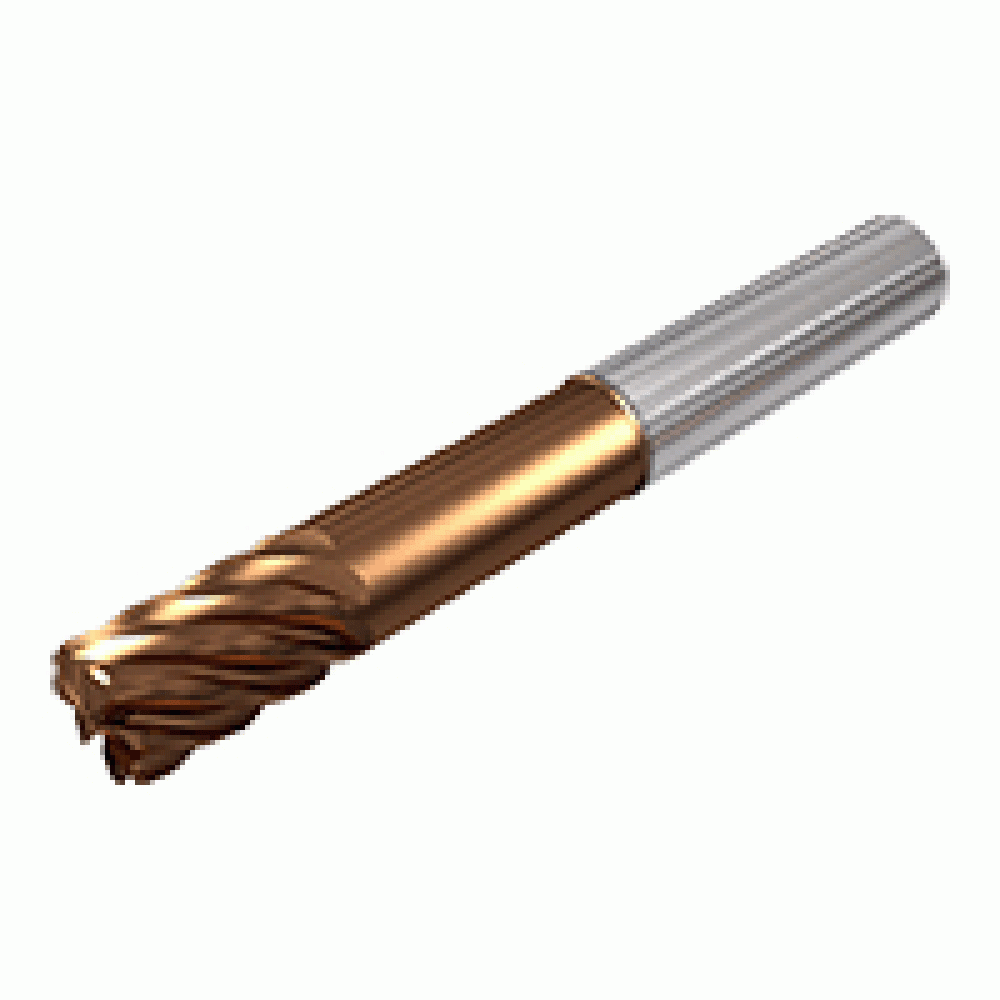

| Short Description | ISCAR 1/2x7/8x3 RCH=1.3/8 7F CARB E.M. TiAlCN COAT CYL SHK |
|---|---|
| Shank Diameter | 0.5000" (12.700 mm) (1/2 ) |
| Overall Length | 3.0000" (76.200 mm) (3) |
| Long Description | 7 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.5000" (12.700 mm) (1/2 ) |
| Flute Length | 0.8750" (22.225 mm) (7/8 ) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-7-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
