Iscar
3412137
ECI-7 1.0-2.63C0VF6 IC608
Specifications

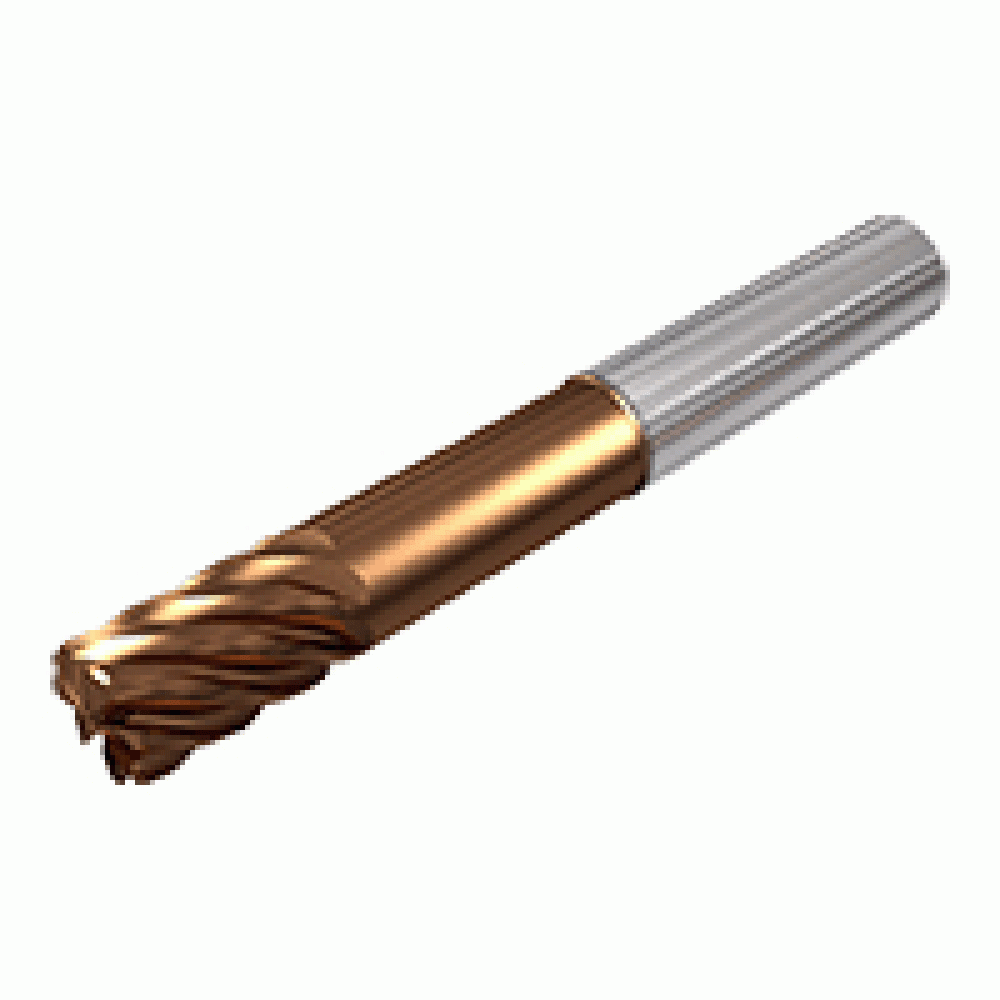

| Short Description | ISCAR 1x2.5/8x6 7F CARBIDE END-MILL TiAlCN COAT CYL SHK |
|---|---|
| Shank Diameter | 1.0000" (25.400 mm) (1) |
| Overall Length | 6.0000" (152.400 mm) (6) |
| Long Description | 7 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 1.0000" (25.400 mm) (1) |
| Flute Length | 2.6250" (66.675 mm) (2 5/8) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-7-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
