Iscar
3417986

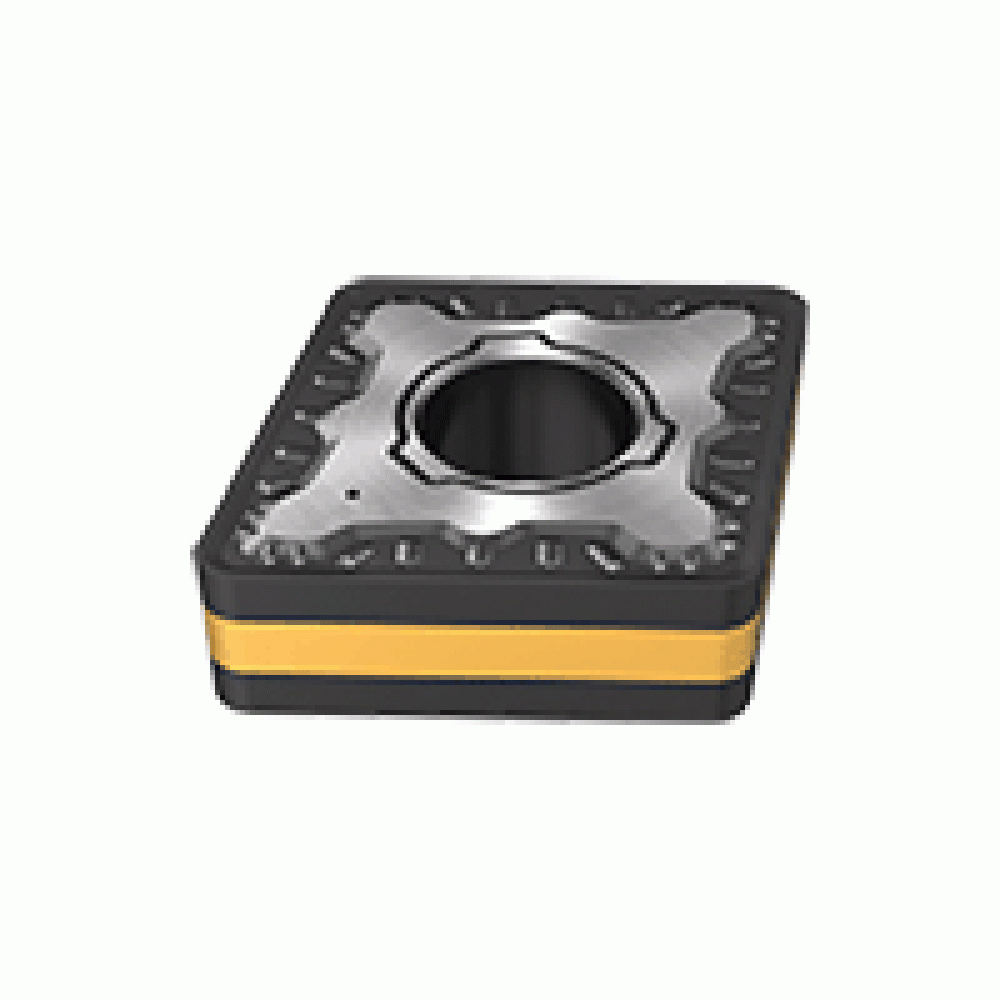

CNMG 643-R3P IC807
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 100 degrees |
| Style | CNMG |
| Long Description | Double-Sided 80° Rhombic Inserts with a Chipformer for Rough Machining |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided 80° Rhombic Inserts with a Chipformer for Rough Machining |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.13 OZ |
| Width | 2.20 Inch |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMG-R3P |
| Weight (OZ) | 1.13228 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
