Iscar
3418091

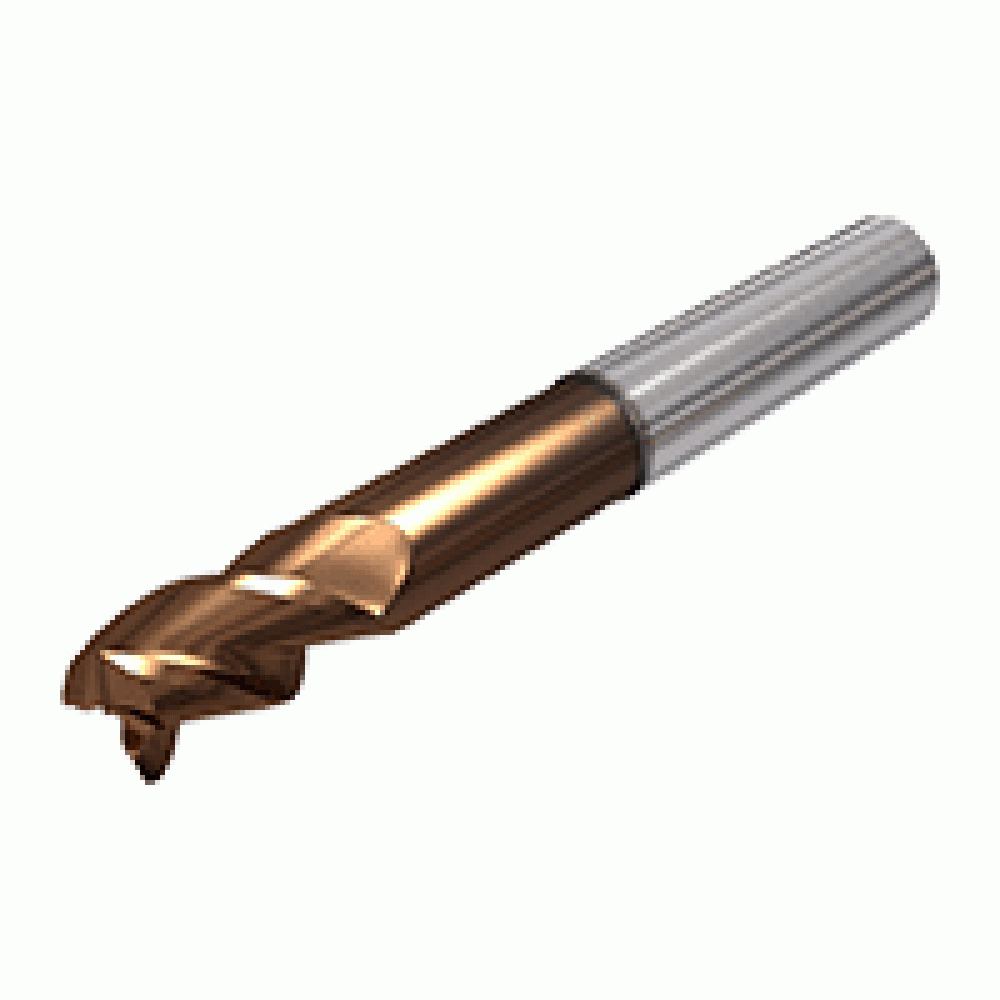

ECI-3 250-1.0C0VF3 IC608
Specifications
| Short Description | ISC 1/4x1x3 3F CARBIDE E.M. AlTiCrSiN CYL |
|---|---|
| Shank Diameter | 0.2500" (6.350 mm) (1/4 ) |
| Overall Length | 3.0000" (76.200 mm) (3) |
| Long Description | 3 flute endmill with and without relieved necks, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.2500" (6.350 mm) (1/4 ) |
| Flute Length | 1.0000" (25.400 mm) (1) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-3-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
