Iscar
3418139

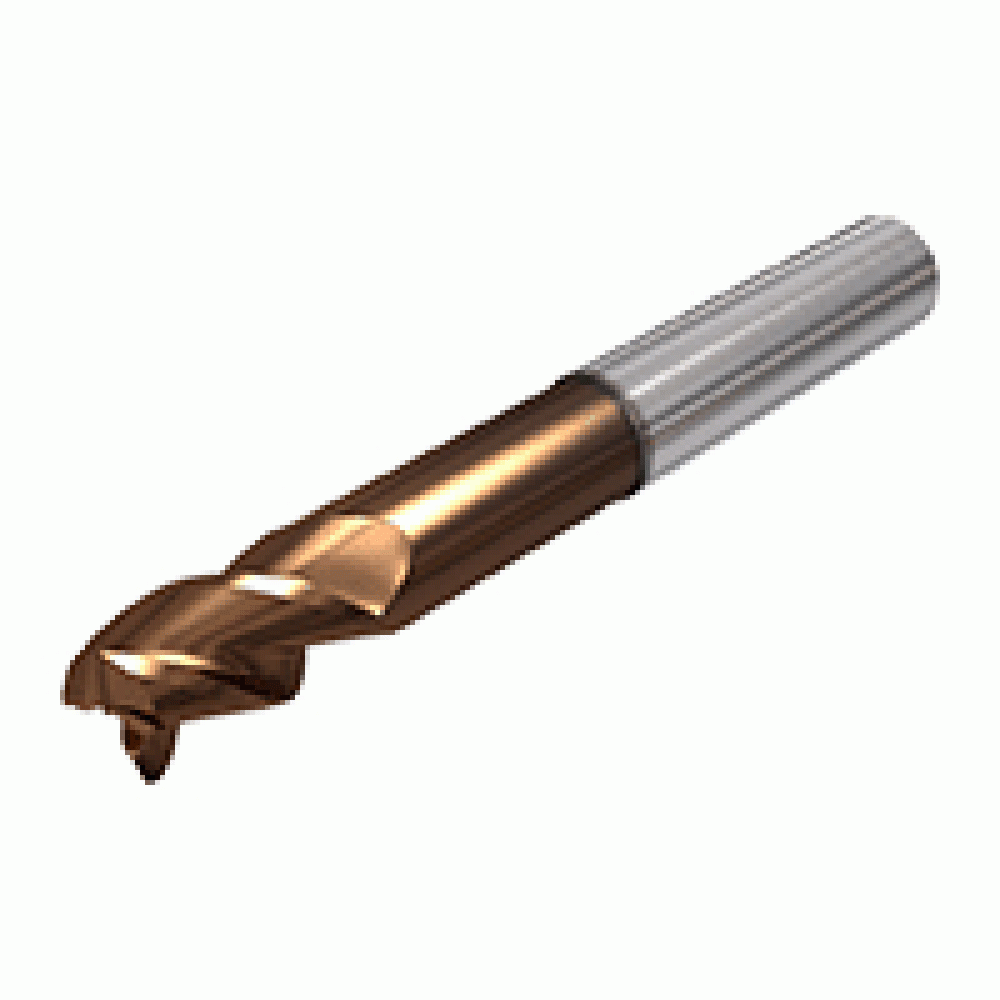

ECI-3 750-1.63C0VF4 IC608
Specifications
| Short Description | ISC 3/4x1.5/8x4 3F CARBIDE E.M. AlTiCrSiN CYL |
|---|---|
| Shank Diameter | 0.7500" (19.050 mm) (3/4 ) |
| Overall Length | 4.0000" (101.600 mm) (4) |
| Long Description | 3 flute endmill with and without relieved necks, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.7500" (19.050 mm) (3/4 ) |
| Flute Length | 1.6250" (41.275 mm) (1 5/8) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-3-VF |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
