Iscar
3420700

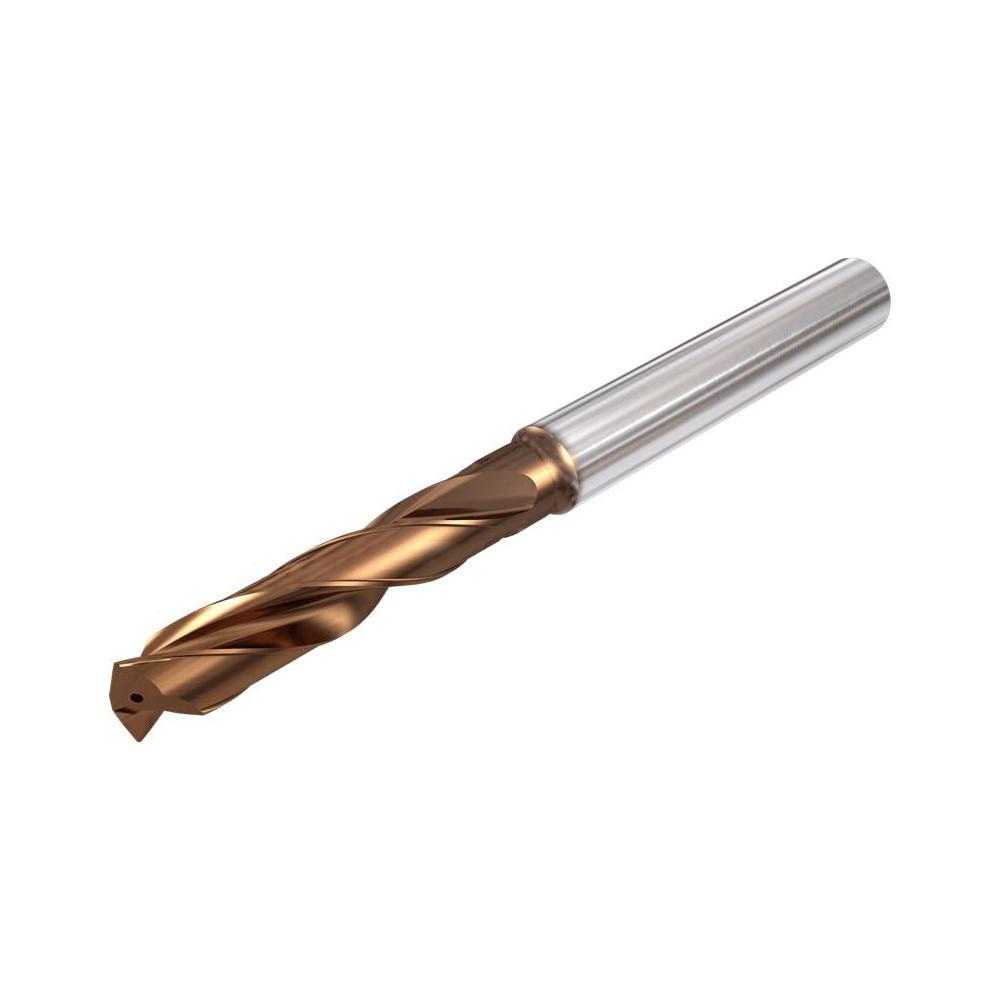

SCD 093-032-100 ACP3FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|
| Long Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR M9.30 3XD CARB/IC608 COOLANT DRILL 47x89 M10sh |
| Shank Diameter | 0.3937" (10.000 mm) |
| Flute Length | 1.8504" (47.000 mm) |
| APP1Name | Drilling |
| Overall Length | 3.5039" (89.000 mm) |
| FamilyName | SCD-ACP3FL (3XD) |
| COO | USA |
| Weight (OZ) | 0.24691 |
| Diameter | 0.3661" (9.300 mm) |
| Width (Inch) | 4.02 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
