Iscar
3420708

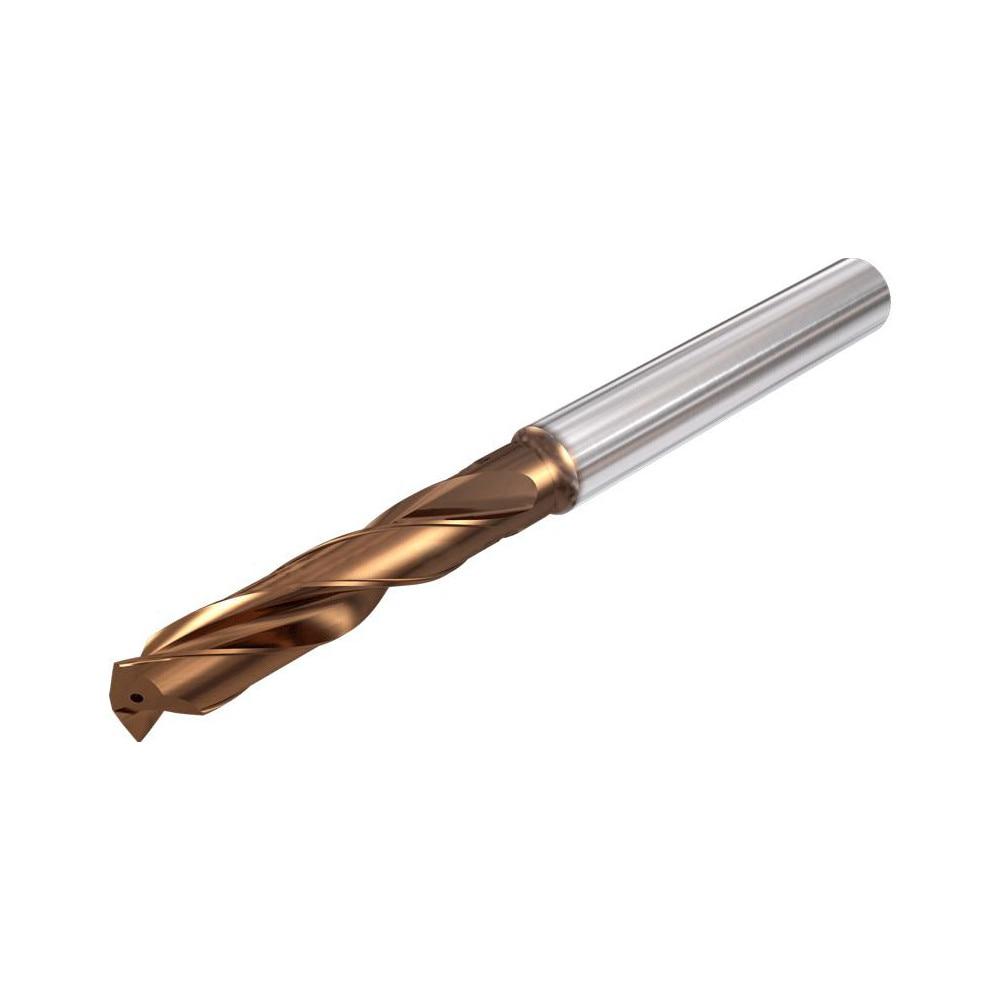

SCD 116-037-120 ACP3FL IC608
Specifications
| Coating | AlTiCrSiN |
|---|---|
| Long Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) |
| Material | Carbide |
| Short Description | ISCAR SCD 116-037-120 ACP3FL |
| Shank Diameter | 0.4724" (12.000 mm) |
| Flute Length | 2.1654" (55.000 mm) |
| APP1Name | Drilling |
| Overall Length | 4.0157" (102.000 mm) |
| FamilyName | SCD-ACP3FL (3XD) |
| COO | USA |
| Weight (OZ) | 0.42328 |
| Diameter | 0.4567" (11.600 mm) |
| Width (Inch) | 4.53 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
