Iscar
3428113

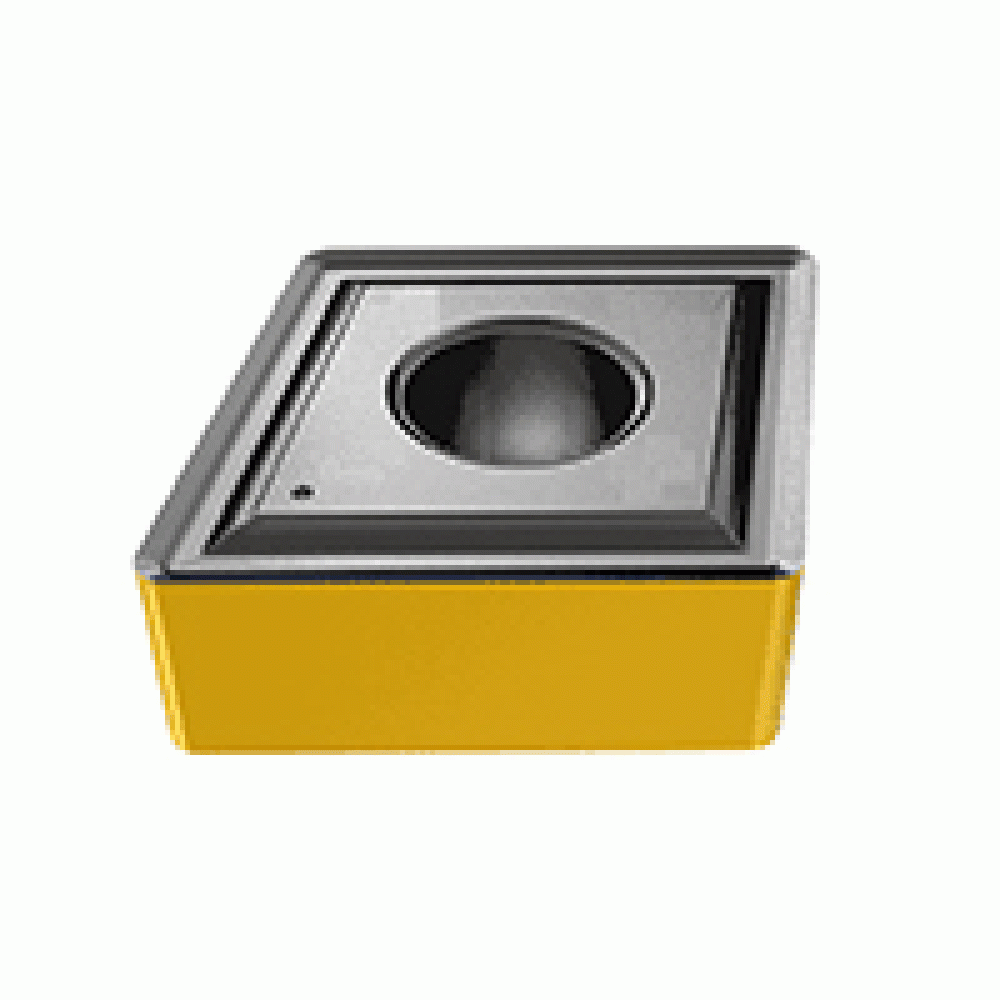

CNMG 431-VL IC1017
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Included Angle | 100 degrees |
| Style | CNMG |
| Long Description | A double-sided 80° rhombic inserts with a chipformer used on high temperature alloys and stainless steel parts such as valves. Used for facing, longitudinal turning and profiling in roughing and finishing conditions. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided 80° Rhombic Inserts with a Chipformer for High Temperature Alloys and Stainless Steel Valves |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.39 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMG-VL |
| Weight (OZ) | 0.39153 |
| Width (Inch) | 1.57 |
| Measurement Type | Inch |
