Iscar
3434064

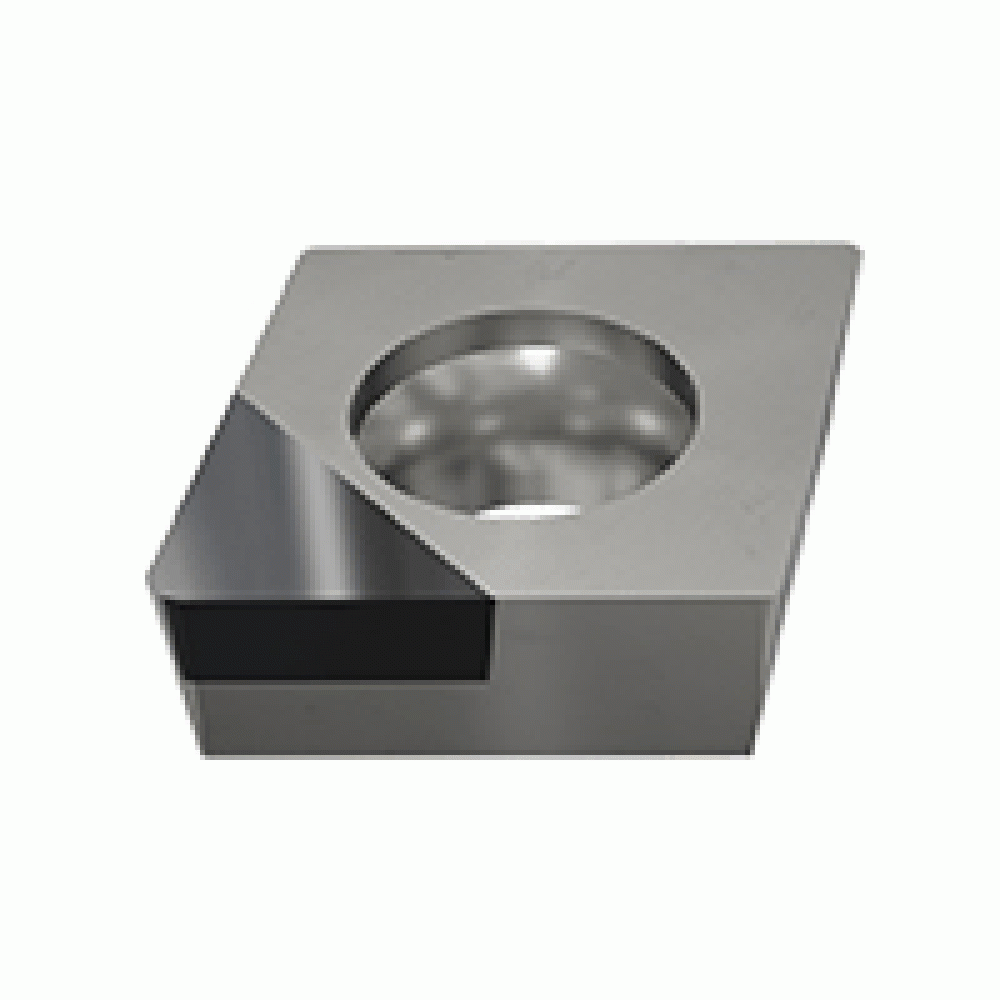

CPGW 32.51F ID5
Specifications
| Material | PCD |
|---|---|
| Included Angle | 80 degrees |
| Style | CPGW |
| Long Description | Positive 80° rhombic inserts with PCD top corner tip, used for finishing aluminum and other non-ferrous materials. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Germany |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Positive 80° Rhombic Inserts with PCD Top Corner Tip for Finishing Non-Ferrous Materials |
| Height | 0.51 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.27 OZ |
| Width | 1.77 Inch |
| APP1Name | Ext. 80° Diamond 91° Approach |
| FamilyName | CPGW (PCD) |
| Weight (OZ) | 0.26808 |
| Width (Inch) | 1.77 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
