Iscar
3435226

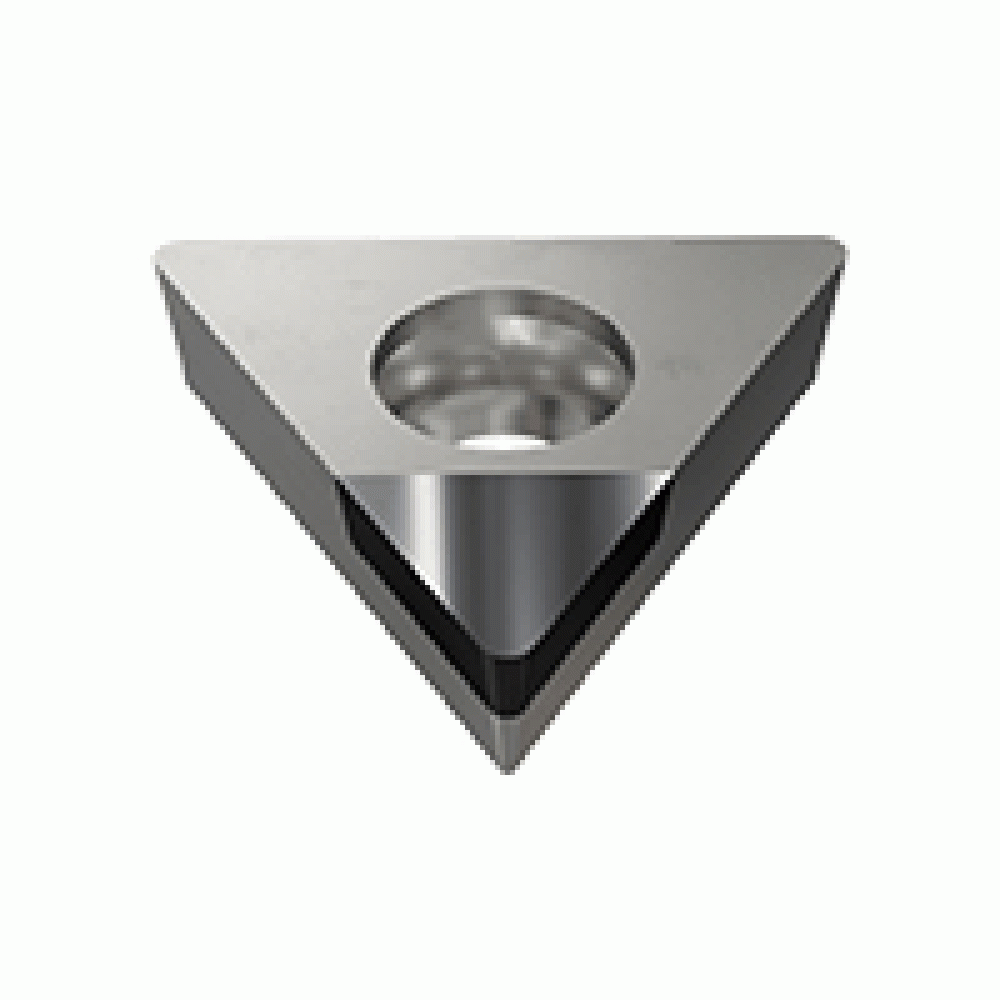

TCGW 21.51F ID5
Specifications
| Material | PCD |
|---|---|
| Included Angle | 60 degrees |
| Style | TCGW |
| Long Description | Positive 60° triangular inserts with single PCD top corner tip, used for finishing aluminum and other non-ferrous materials. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Country of Origin | Germany |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Positive 60° Triangular Inserts with Single PCD Top Corner Tip for Finishing Non-Ferrous Materials |
| Height | 0.47 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.21 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 60° Triangle 91° Approach |
| FamilyName | TCGW (PCD) |
| Weight (OZ) | 0.21164 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
