Iscar
3436572
CNGA 431S-4MT BI15H
Specifications
| Included Angle | 80 degrees |
|---|---|
| Style | CNGA |

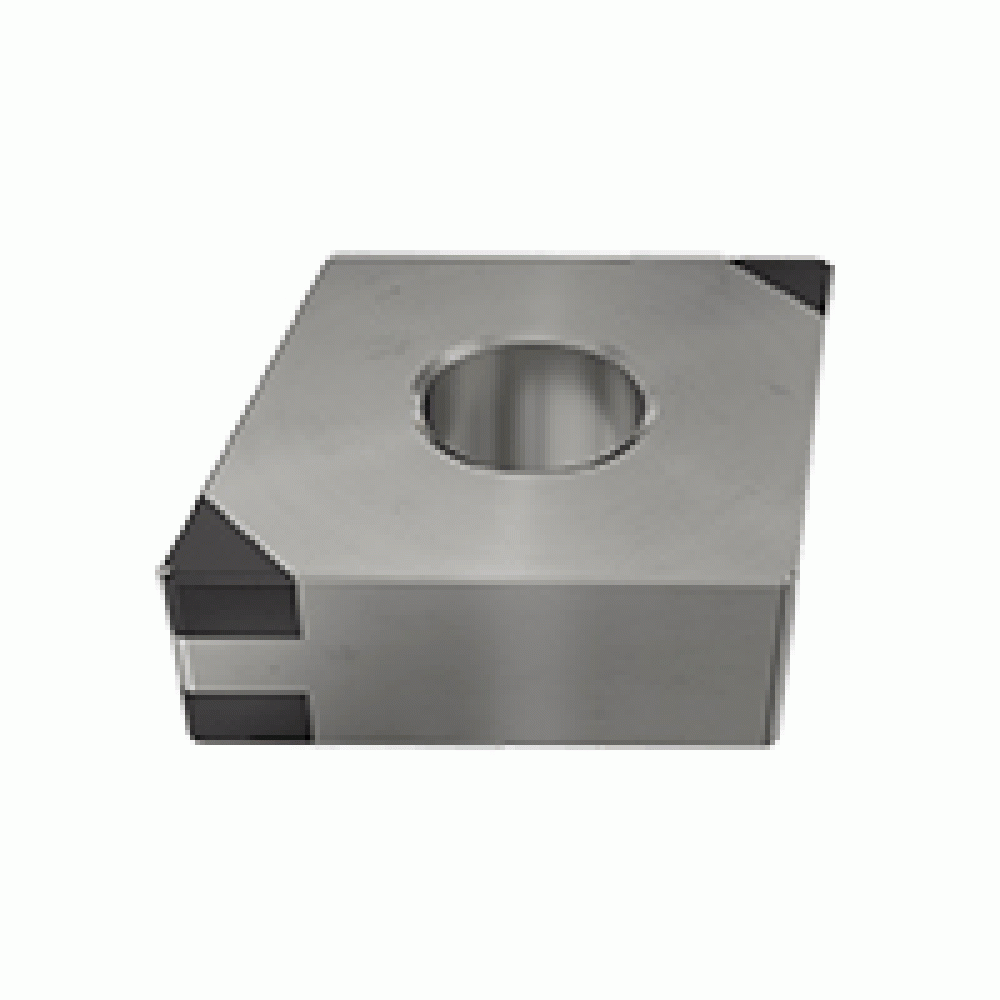

| Long Description | Negative 80° rhombic inserts with 4 CBN mini tip and flat rake angle for hardened steel and cast iron |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Germany |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Negative 80° Rhombic Inserts with 4 CBN Mini Tips and Flat Rake Angle for Hardened Steel and Cast Iron |
| Height | 0.51 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.49 OZ |
| Width | 1.77 Inch |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | CNGA 4MT (CBN) |
| Weight (OZ) | 0.49383 |
| Width (Inch) | 1.77 |
| Measurement Type | Inch |
