Iscar
3437853
VNGA 331S-2MT BI05H
Specifications
| Material | PCBN |
|---|---|
| Included Angle | 35 degrees |
| Style | VNGA |

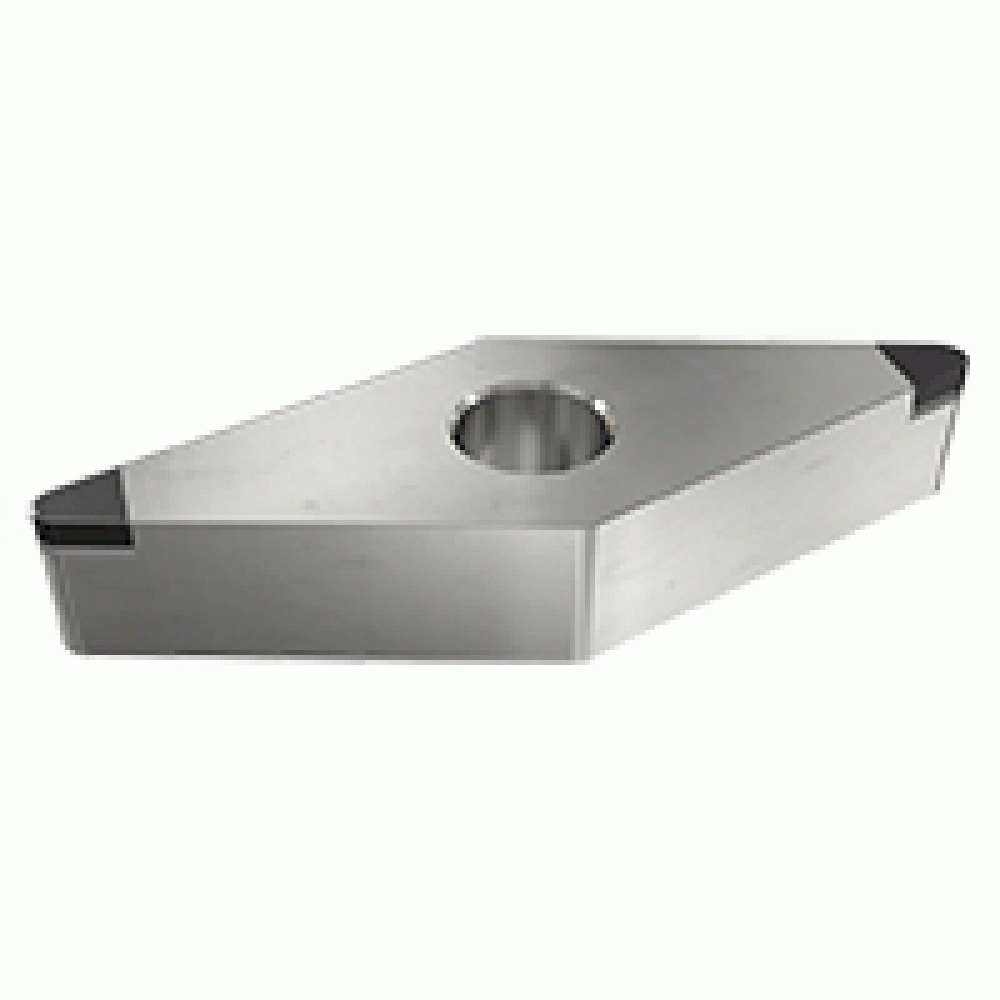

| Long Description | Negative 35° rhombic inserts with 2 single CBN mini tips for hardened steel and cast iron |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Germany |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Negative 35° Rhombic Inserts with 2 Single CBN Mini Tips for Hardened Steel and Cast Iron |
| Height | 0.47 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.51 OZ |
| Width | 1.65 Inch |
| APP1Name | Ext. 35° Diamond 72.5° Approac |
| FamilyName | VNGA 2MT (CBN) |
| Weight (OZ) | 0.50794 |
| Width (Inch) | 1.65 |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
