Iscar
3601083

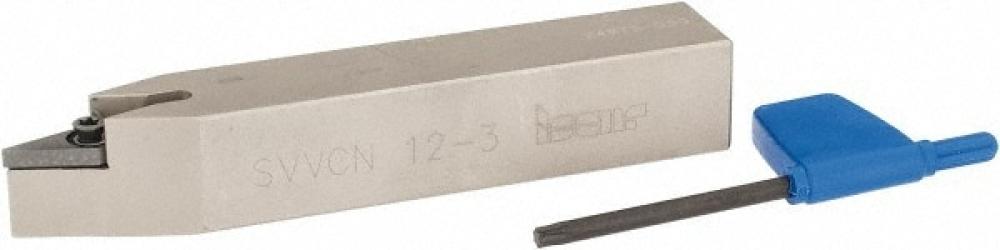

SVVCN 12-3
Specifications
| Short Description | ISCAR SVVCN-12-3 3/4x4.1/2 NEUTRAL TOOLHOLDER VCMT-33 |
|---|---|
| Shank Width | 0.7500 |
| Long Description | 72.5° lead angle screw lock tools carrying 35° diamond inserts with 7° clearance angle. |
| APP1Name | Ext. 35° Diamond 72.5° Approac |
| Overall Length | 4.5000 |
| FamilyName | SVVCN |
| Shank Height | 0.7500 |
| COO | Israel |
| Insert Shape | 35° Diamond |
| Weight (OZ) | 11.35802 |
| Width (Inch) | 1.5 |
| Coolant Hole | No |
| Measurement Type | Inch |
