Iscar
3601665
PQFNL 16-4
Specifications
| Short Description | PQFNL-16-4 ISCAR TURNING HOLDERS EXTERNAL |
|---|---|
| Shank Width | 1.0000 |

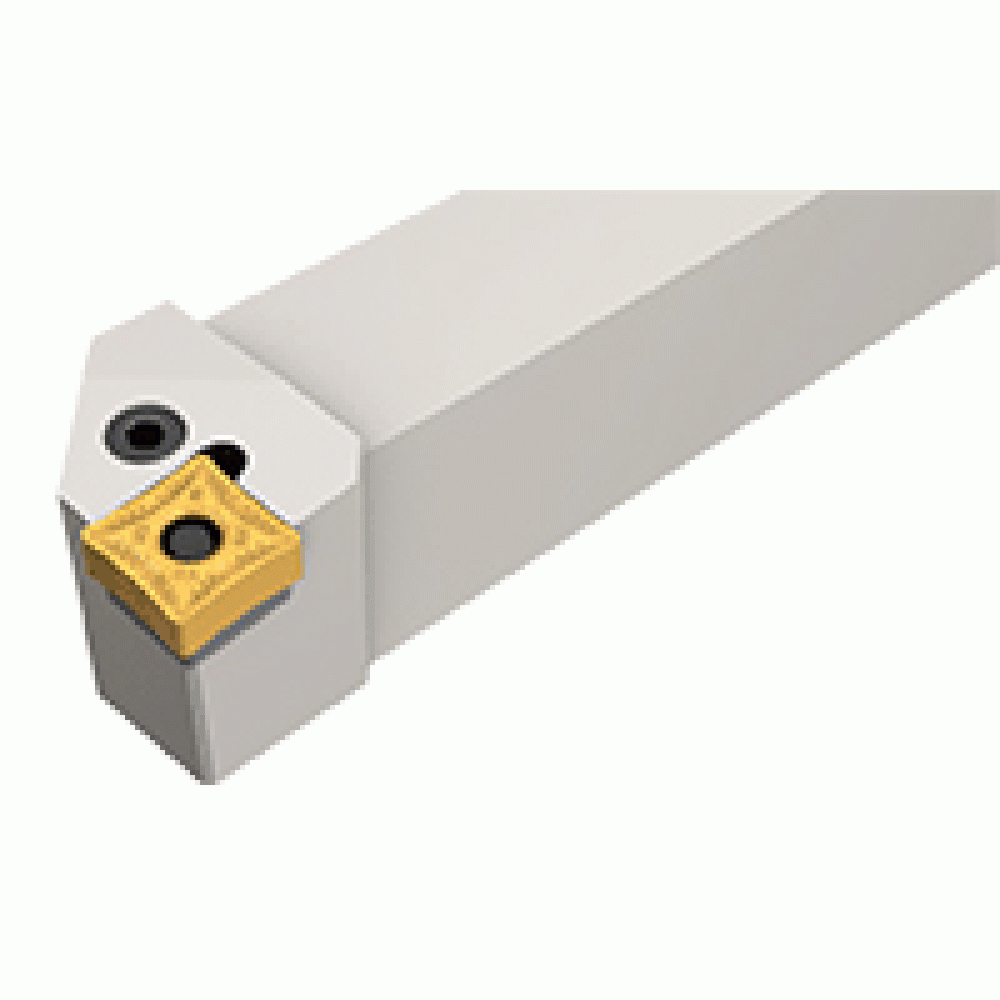

| Long Description | Lever lock face turning tools carrying negative inserts with four 80° corners (AD - short tools for adapter holders). |
| APP1Name | Ext. 80° Q#MG 95°Approach Face |
| Overall Length | 6.0000 |
| FamilyName | PQFNR/L |
| Shank Height | 1.0000 |
| COO | Israel |
| Insert Shape | 80° Square |
| Weight (OZ) | 28.00705 |
| Width (Inch) | 1.42 |
| Coolant Hole | No |
| Measurement Type | Inch |
