Iscar
3602007
MG 06-SWUCR-02
Specifications
| Material | Carbide |
|---|---|

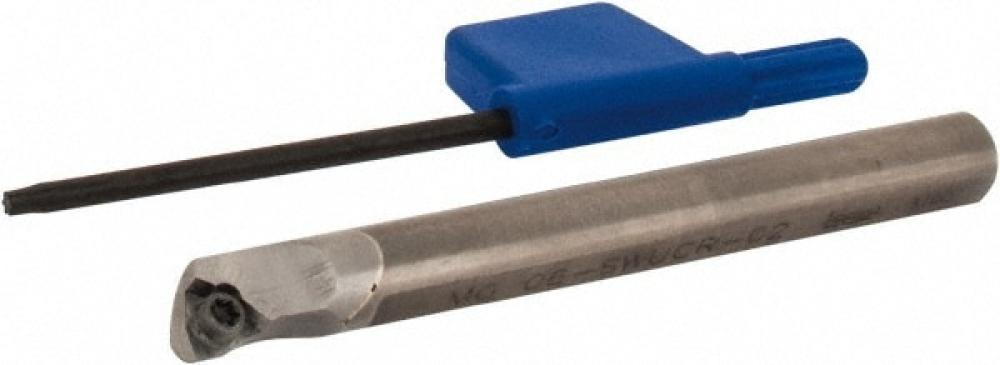

| Long Description | Solid Carbide Boring Bars Carrying WCGT Trigon Inserts for Small Diameters. Protrusion may be adjusted in the PASSPORT holders. |
| Short Description | ISCAR M6x60 RH CARB BORING BAR MB=.260 WCGX-0201 |
| APP1Name | Int. 80° Trigon 93° Approach |
| FamilyName | MG-SWUCR |
| Coolant | No |
| COO | Israel |
| Insert Style | WCGT |
| Insert Shape | 80° Trigon |
| Weight (OZ) | 1.41093 |
| Width (Inch) | 0.98 |
| Measurement Type | Inch |
