Iscar
3602099
DDJNL 12-4
Specifications

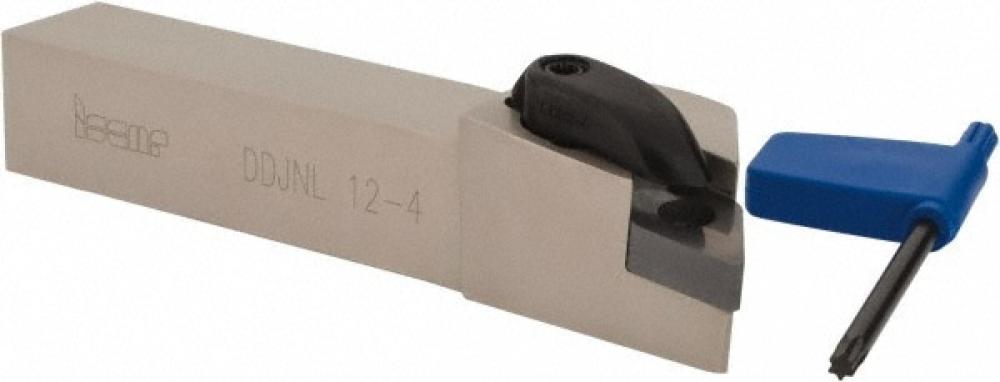

| Short Description | DDJNL-12-4 ISCAR R-CLAMP TOOLHOLDER |
|---|---|
| Shank Width | 0.7500 |
| Long Description | R-Clamp tools with 93° lead angle carrying 55° negative rhombic inserts. |
| APP1Name | Ext. 55° Diamond 93° Approach |
| Overall Length | 4.5000 |
| FamilyName | DDJNR/L |
| Shank Height | 0.7500 |
| COO | Israel |
| Insert Shape | 55° Diamond |
| Weight (OZ) | 13.40388 |
| Width (Inch) | 1.5 |
| Coolant Hole | No |
| Measurement Type | Inch |
