Iscar
3602230
PCLCR 10-3S
Specifications

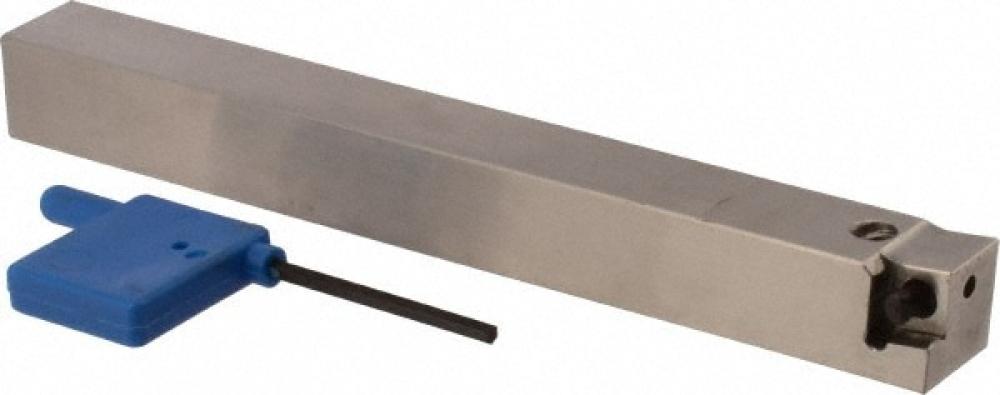

| Short Description | ISCAR PCLCR-10-3S 5/8" SHANK TOOLHOLDER |
|---|---|
| Shank Width | 0.6250 |
| Long Description | Side lever lock tools carrying 80° positive rhombic inserts for Swiss automatic machines. |
| APP1Name | Ext. 80° Diamond 95° Approach |
| Overall Length | 5.9000 |
| FamilyName | PCLCR/L-S |
| Shank Height | 0.6250 |
| COO | Switzerland |
| Insert Shape | 80° Diamond |
| Weight (OZ) | 11.07584 |
| Width (Inch) | 1.42 |
| Coolant Hole | No |
| Measurement Type | Inch |
