Iscar
3602913
C5 PCLNR-35060-16X
Specifications

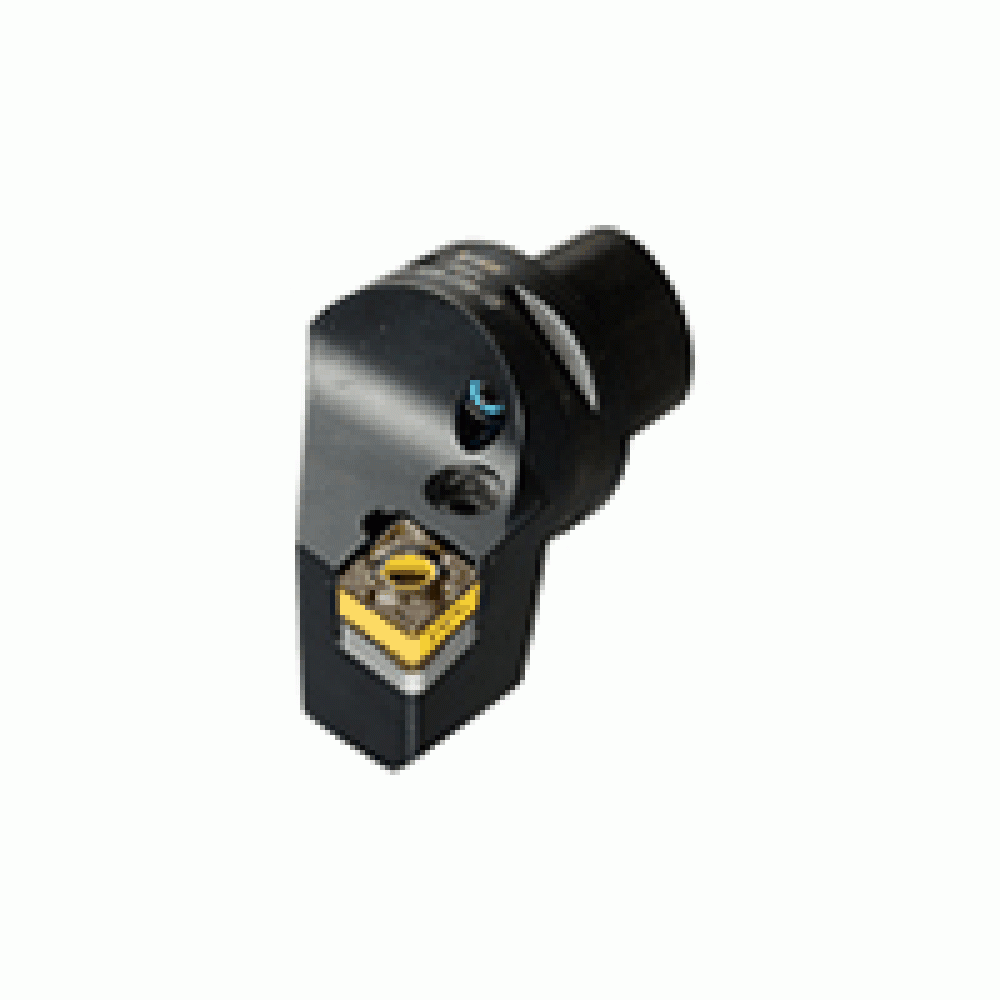

| Short Description | C5-PCLNR-35060-16X ISCAR CAPTO/HSK/KM -ISO TURN TOOLS |
|---|---|
| Long Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying CNMX or CNMG negative 80° rhombic inserts. |
| Shank Size | C5 |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | C#-PCLNR/L-X |
| COO | Israel |
| Insert Shape | 80° Diamond |
| Weight (OZ) | 27.40741 |
| Width (Inch) | 3.35 |
| Coolant Hole | No |
| Measurement Type | Inch |
