Iscar
3602966

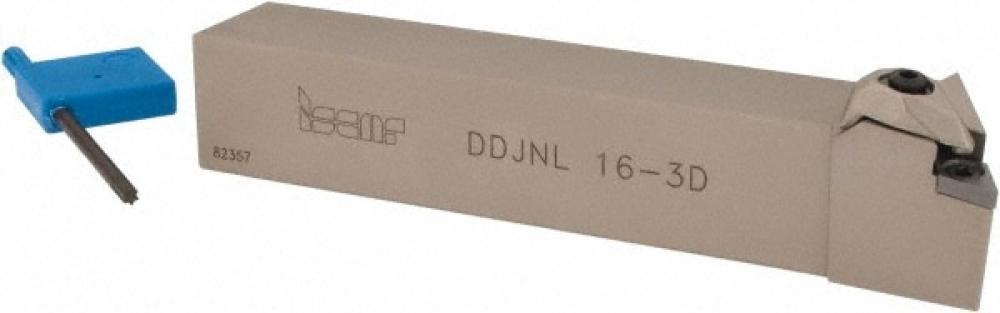

DDJNL 16-3D
Specifications
| Short Description | ISCAR DDJNL-16-3D 1x6" LH TOOLHOLDER WITH R-CLAMP |
|---|---|
| Shank Width | 1.0000 |
| Long Description | R-Clamp tools with 93° lead angle carrying 55° negative rhombic inserts. |
| APP1Name | Ext. 55° Diamond 93° Approach |
| Overall Length | 6.0000 |
| FamilyName | DDJNR/L |
| Shank Height | 1.0000 |
| COO | Korea |
| Insert Shape | 55° Diamond |
| Weight (OZ) | 27.16049 |
| Width (Inch) | 1.57 |
| Coolant Hole | No |
| Measurement Type | Inch |
