Iscar
3603312

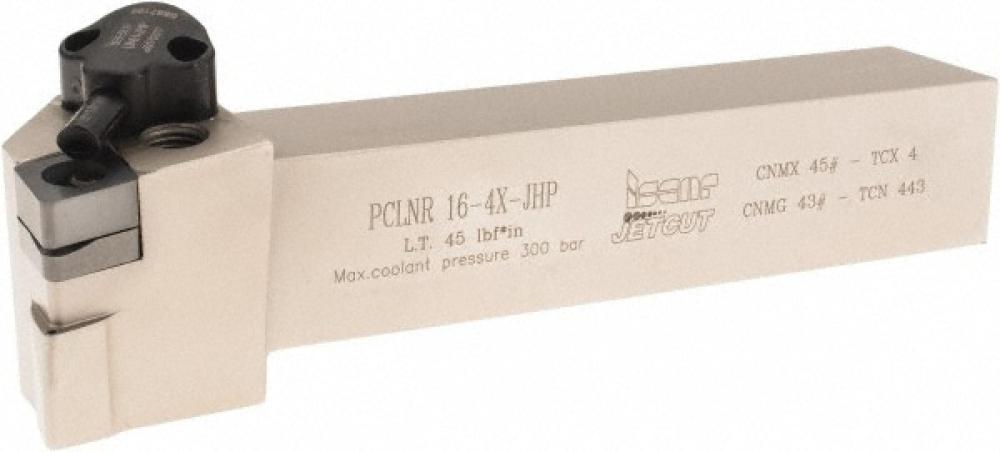

PCLNR 16-4X-JHP
Specifications
| Short Description | ISCAR PCLNR-16-4X-JHP 1x6" RH TOOLHOLDER W/COOLANT (NOTES) |
|---|---|
| Shank Width | 1.0000 |
| Long Description | Lever lock tools with channels for high pressure coolant carrying the CNMX/CNMG 80° rhombic inserts. |
| APP1Name | Ext. 80° Diamond 95° Approach |
| Overall Length | 6.0000 |
| FamilyName | PCLNR/L-X-JHP |
| Shank Height | 1.0000 |
| COO | Israel |
| Insert Shape | 80° Diamond |
| Weight (OZ) | 31.85185 |
| Width (Inch) | 2.17 |
| Coolant Hole | Yes |
| Measurement Type | Inch |
