Iscar
3603319
SLANL 20-15 TANG-JHP
Specifications

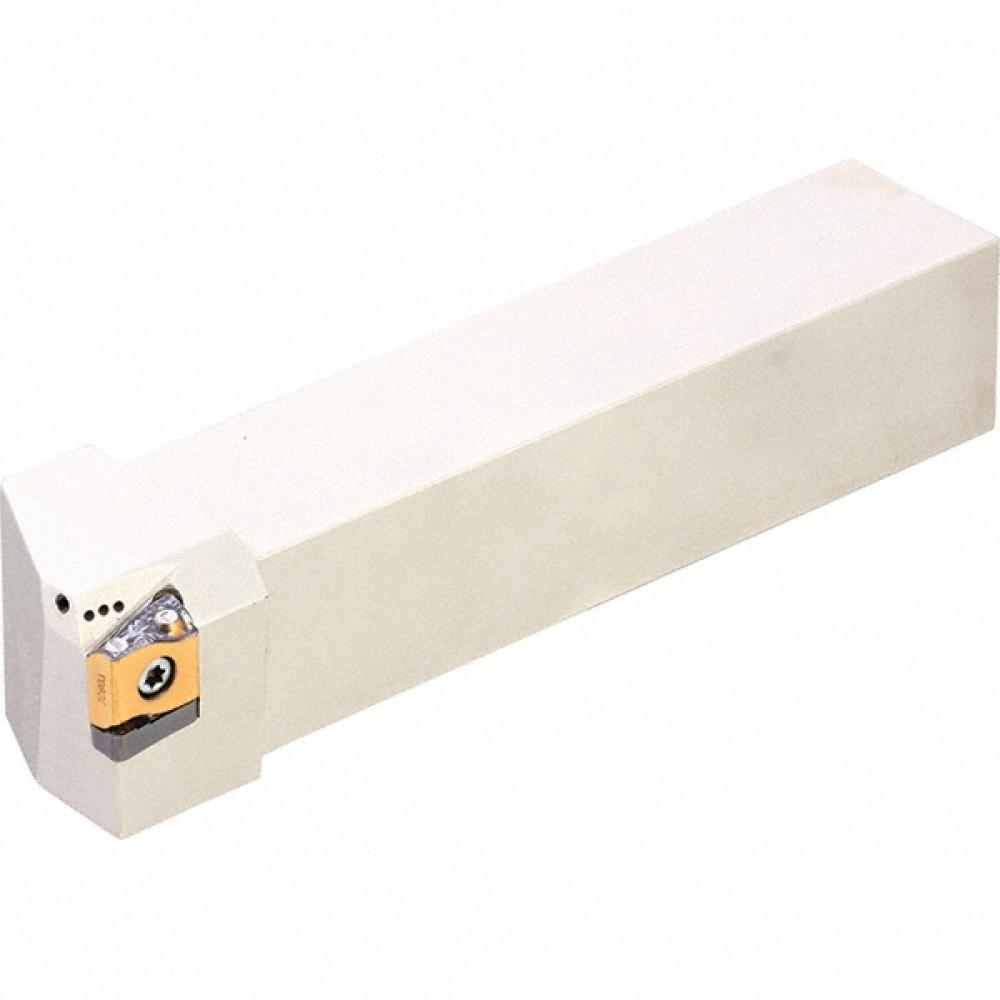

| Short Description | ISCAR SLANL 20-15 TANG-JHP TOOLHOLDER |
|---|---|
| Shank Width | 1.2500 |
| Long Description | Screw-clamped tools with channels for high-pressure coolant, carrying LNMX tangentially clamped inserts. Recommended for heavy longitudinal and face turning. |
| APP1Name | Ext. Tangential 93° Approach |
| Overall Length | 6.0000 |
| FamilyName | SLANR/L-15-TANG-JHP |
| Shank Height | 1.2500 |
| COO | Israel |
| Insert Shape | Tangential |
| Weight (OZ) | 46.63139 |
| Width (Inch) | 7.09 |
| Coolant Hole | Yes |
| Measurement Type | Inch |
