Iscar
3603373

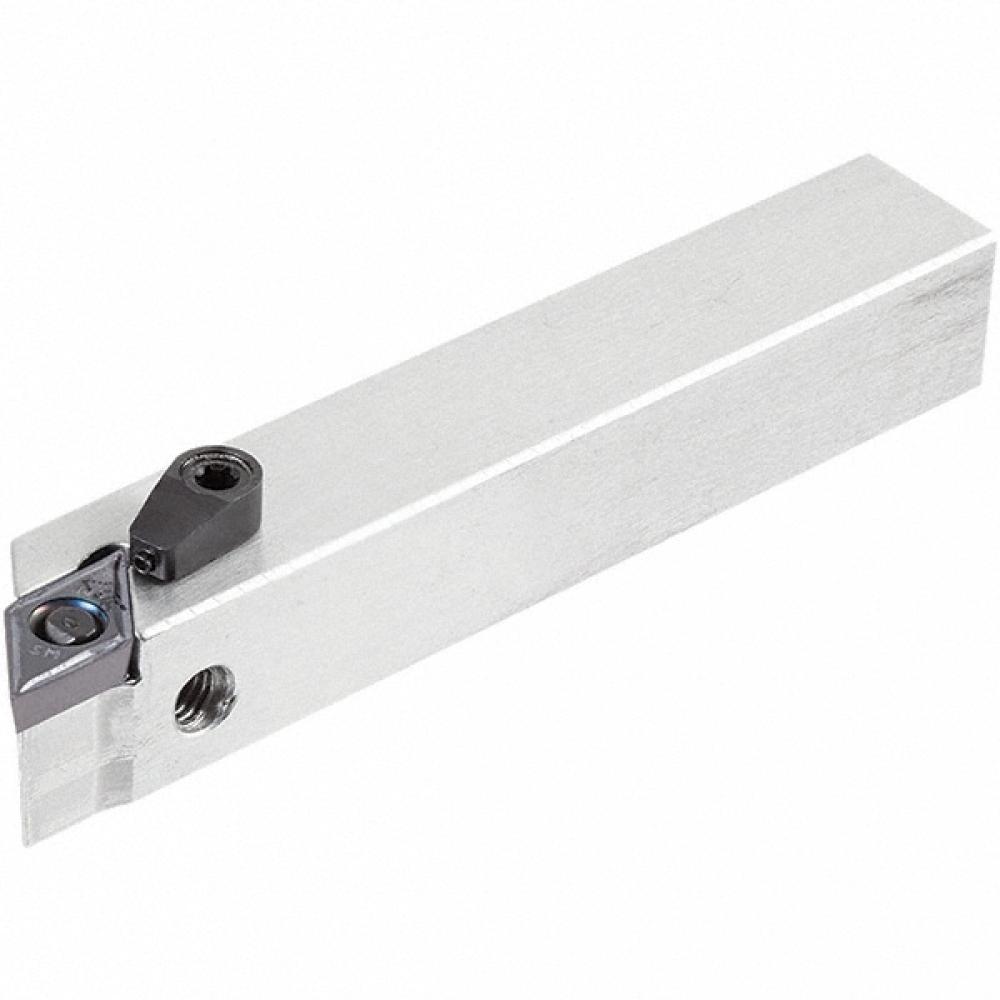

PDJCR 10-3S-JHP
Specifications
| Short Description | PDJCR-10-3S-JHP ISCAR JET HP LINE HOLDER |
|---|---|
| Shank Width | 0.6250 |
| Long Description | Lever lock tools with channels for high pressure coolant for 55° positive rhombic inserts. The tools were designed for Swiss automatic machines. |
| APP1Name | Ext. 55° Diamond 93° Approach |
| Overall Length | 4.0000 |
| FamilyName | PDJCR/L-JHP |
| Shank Height | 0.6250 |
| COO | Switzerland |
| Insert Shape | 55° Diamond |
| Weight (OZ) | 6.94885 |
| Width (Inch) | 1.18 |
| Coolant Hole | Yes |
| Measurement Type | Inch |
