Iscar
3603393

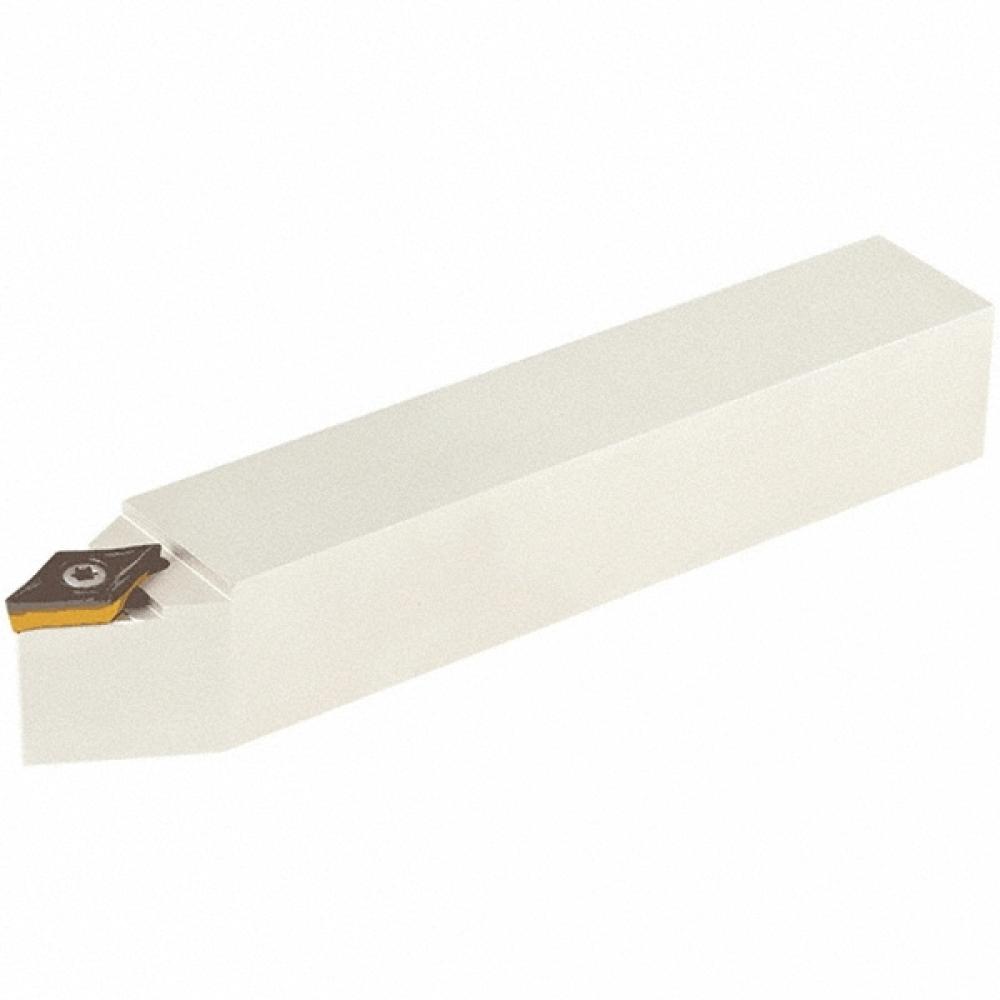

SDNCN 10-13-SL
Specifications
| Short Description | SDNCN-10-13-SL ISCAR TURNING HOLDERS EXTERNAL |
|---|---|
| Shank Width | 0.6250 |
| Long Description | Screw lock tools carrying 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications. |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| Overall Length | 4.0000 |
| FamilyName | SDNCN-13-SL |
| Shank Height | 0.6250 |
| COO | Israel |
| Insert Shape | 55° Diamond |
| Weight (OZ) | 7.5485 |
| Width (Inch) | 1.5 |
| Coolant Hole | No |
| Measurement Type | Inch |
