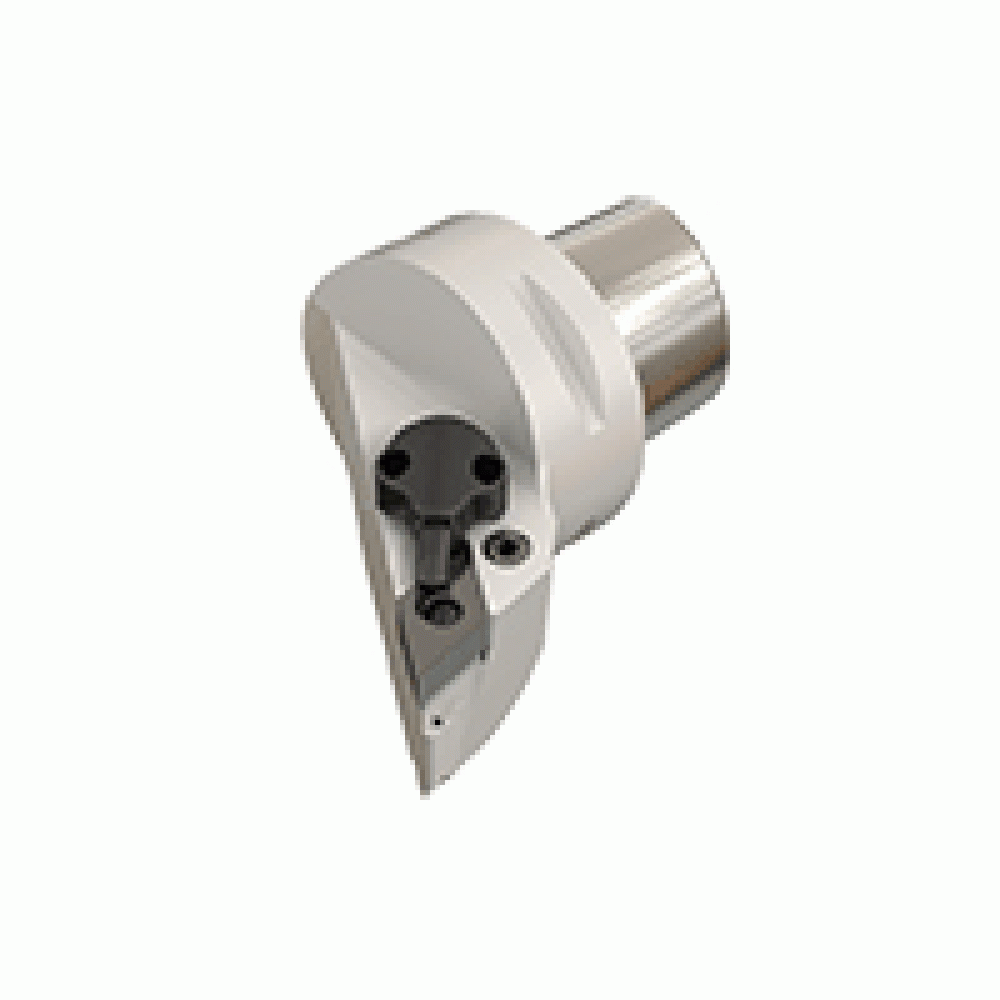

Iscar
3603670
C3 PDJNR-22045-11-JHP
Specifications
| Short Description | ISCAR C3-PDJNR-22045-11-JHP |
|---|---|
| Long Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks and channels for high-pressure coolant, carrying negative 55° inserts. |
| Shank Size | C3 |
| APP1Name | Ext. 55° Diamond 93° Approach |
| FamilyName | C#-PDJNR/L-JHP |
| COO | Israel |
| Insert Shape | 55° Diamond |
| Weight (OZ) | 9.62963 |
| Width (Inch) | 2.56 |
| Coolant Hole | Yes |
| Measurement Type | Inch |
