Iscar
3605972

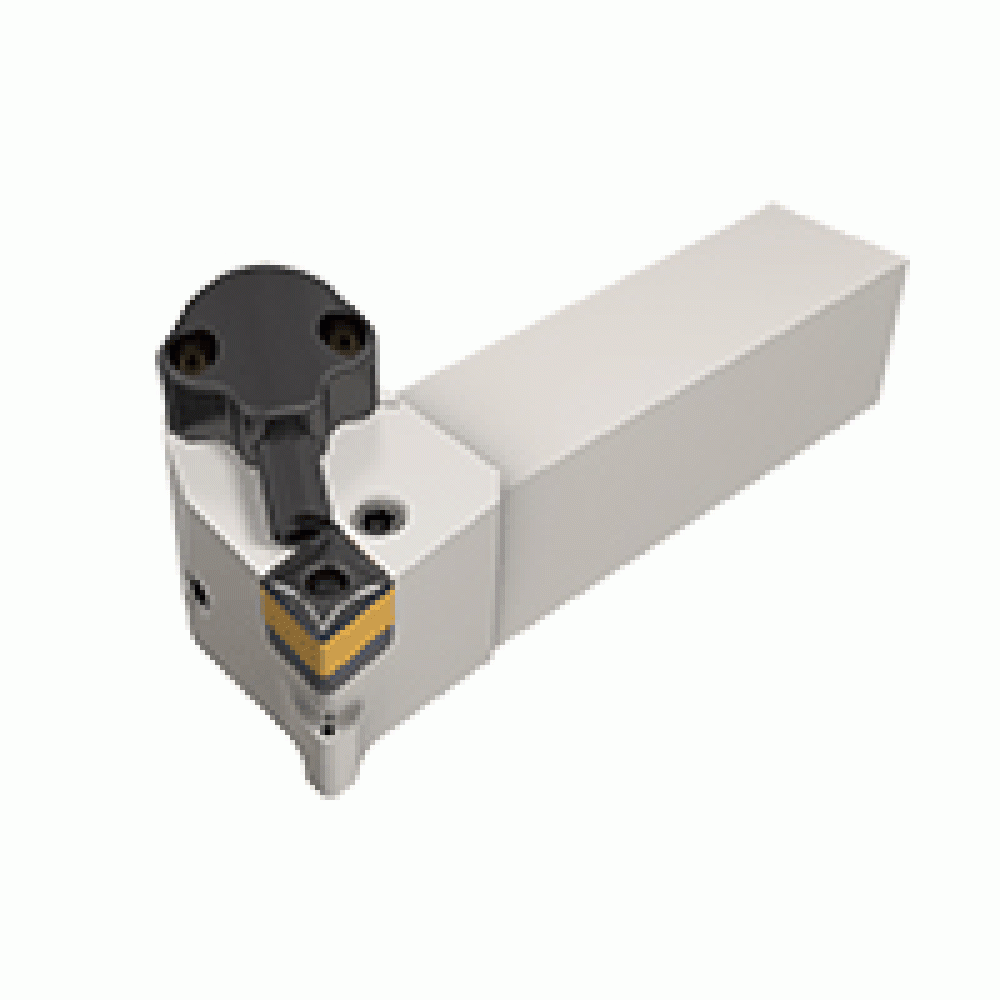

PCLNR 2020X-09X-JHP-MC
Specifications
| Short Description | ISCAR PCLNR-2020X-09X-JHP-MC |
|---|---|
| Long Description | Lever lock tools with bottom inlets for high-pressure coolant channels carrying CNMX/CNMG 80° rhombic inserts. The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders. |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | PCLNR/L-X-JHP-MC |
| COO | Israel |
| Weight (OZ) | 14.77954 |
| Width (Inch) | 2.17 |
| Measurement Type | Metric |
