Iscar
4550299
IHAXF 6- 8/16
Specifications
| Material | Steel |
|---|---|

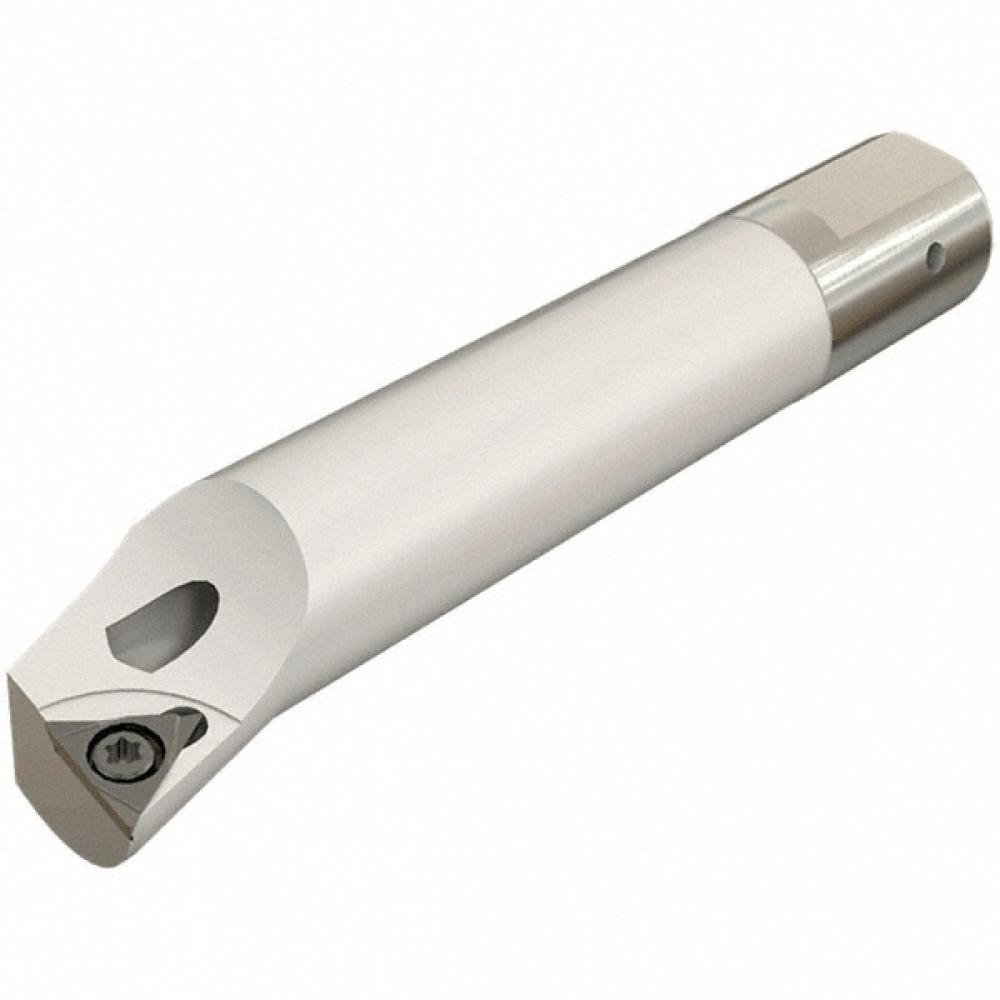

| Long Description | Brazed and indexable boring bars for the MB modular boring system for .098 up to 1.18" diameters. |
| Short Description | ISCAR M16 ITS-BORE BAR .236-.315 RCH=.827 WCGT-0201 |
| Shank Diameter | 0.6300 |
| FamilyName | IHAXF |
| Shank Length | 0.8660 |
| Coolant | Yes |
| Min Bore Diameter | 0.2360 |
| COO | Italy |
| Insert Style | WCGT 0201... |
| Insert Shape | 80° Trigon |
| Weight (OZ) | 1.90476 |
| Width (Inch) | 0.98 |
| Measurement Type | Inch |
