Iscar
5401703
TPGX 730 ID5
Specifications
| Material | PCD |
|---|---|
| Included Angle | 60 degrees |
| Style | TPGX |
| Short Description | TPGX-730-ID5 ISCAR TURNING INSERTS PCD |

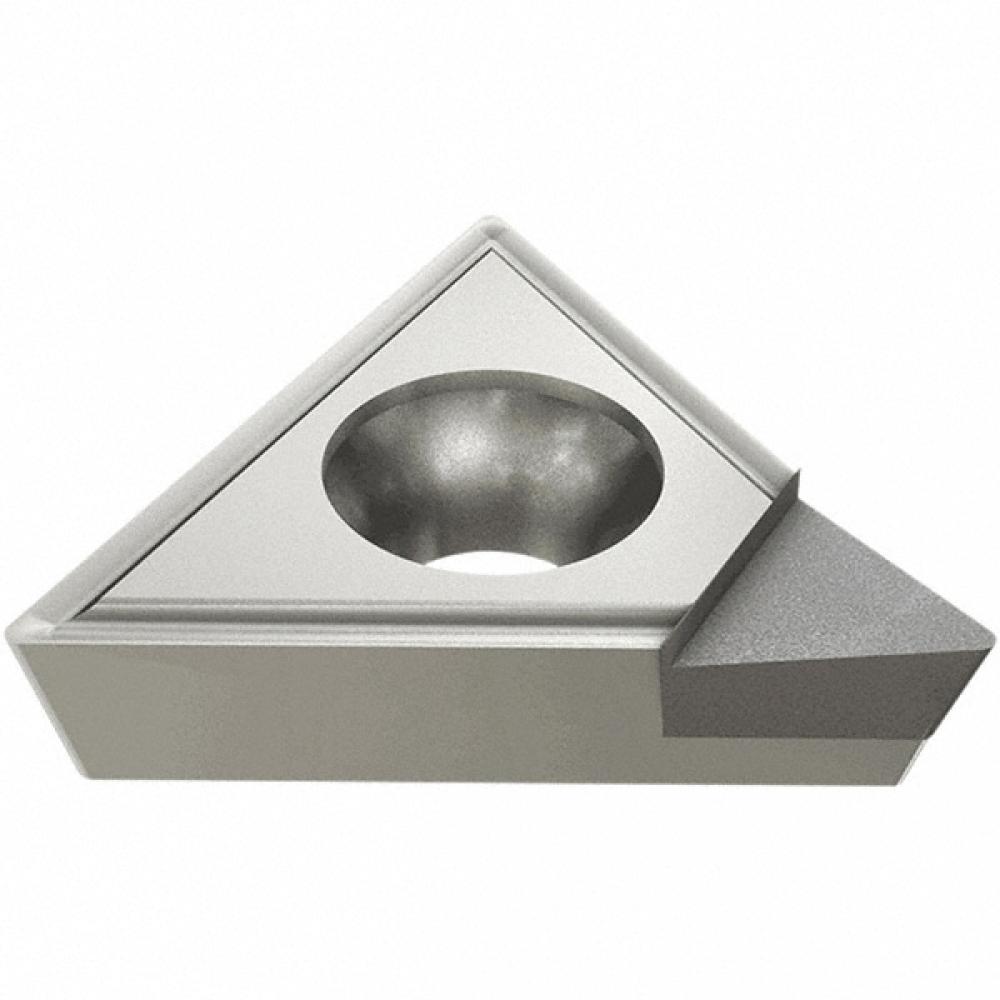

| Long Description | Triangular inserts with PCD single top corner brazed tip, 11° clearance and positive rake angle, for finishing aluminum |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Triangular Inserts with PCD Single Top Corner Brazed Tip, 11° Clearance and Positive Rake Angle for Finishing Aluminum |
| Height | 0.63 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.25 OZ |
| Width | 1.57 Inch |
| APP1Name | Int. 60° Triangle 91° Approach |
| FamilyName | TPGX (PCD) |
| Weight (OZ) | 0.24691 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
