Iscar

5500606

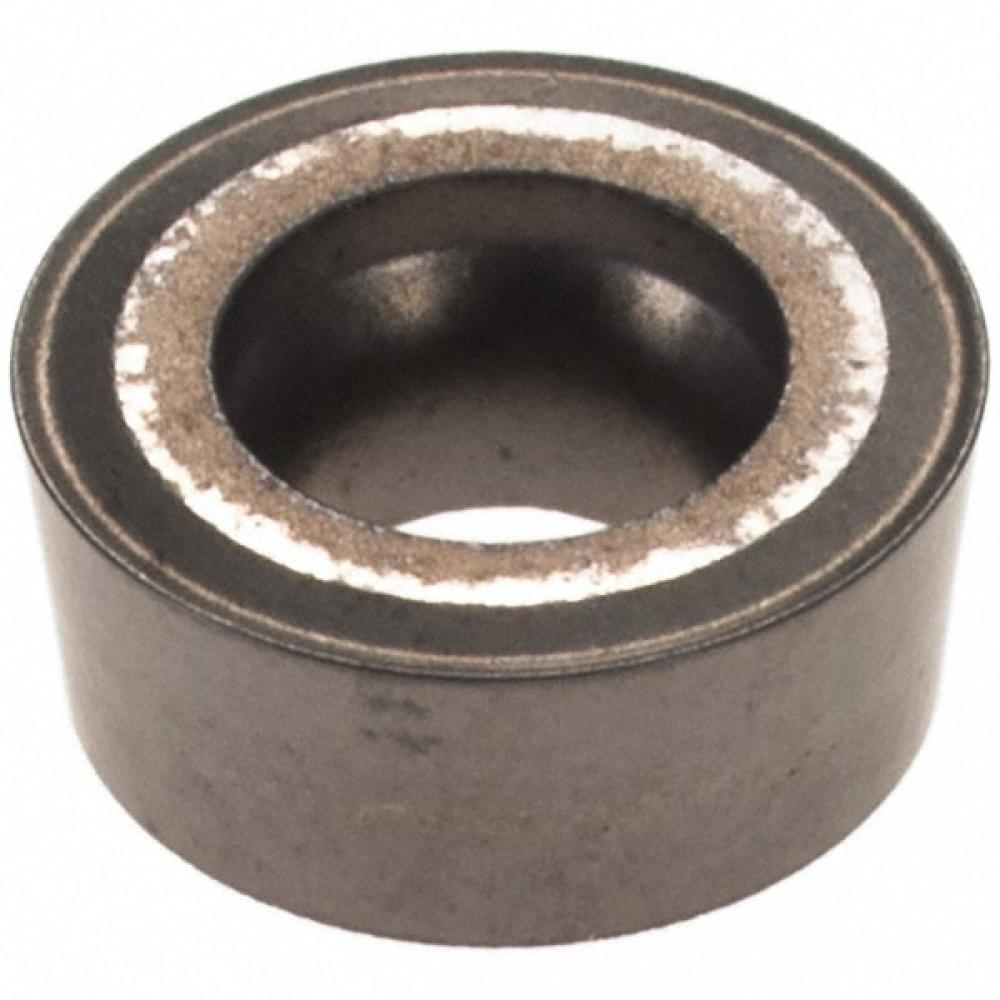

RCMT 0803M0-14 IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.32
StyleRCMT
Thickness (Inch)0.13
Short DescriptionRCMT 0803M014 IC-20 ISCAR CARB.INS.
Long DescriptionRound inserts with a 7° positive flank for medium and finish profiling on a wide range of materials.
Unit Of MeasureImperial
ShapeRound
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.16
Minimum Feed (Decimal)0.01
Maximum Feed (Decimal)0.02
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance Angle7 deg Positive
Machining ApplicationFinishing-Medium
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Family Short DescriptionRound Inserts with a 7° Positive Flank for Medium and Finish Profiling on a Wide Range of Materials
Height0.39 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.11 OZ
Width1.57 Inch
Insert CoatingUncoated
APP1NameExt. Round Face & Turn
FamilyNameRCMT-14
Max. Depth Of Cut0.1570
Insert StyleRCMT
Insert ShapeRound
Insert Thickness0.1250
Weight (OZ)0.10935
Width (Inch)1.57
Cutting Edge MaterialCarbide
Measurement TypeInch
