Iscar

5501443

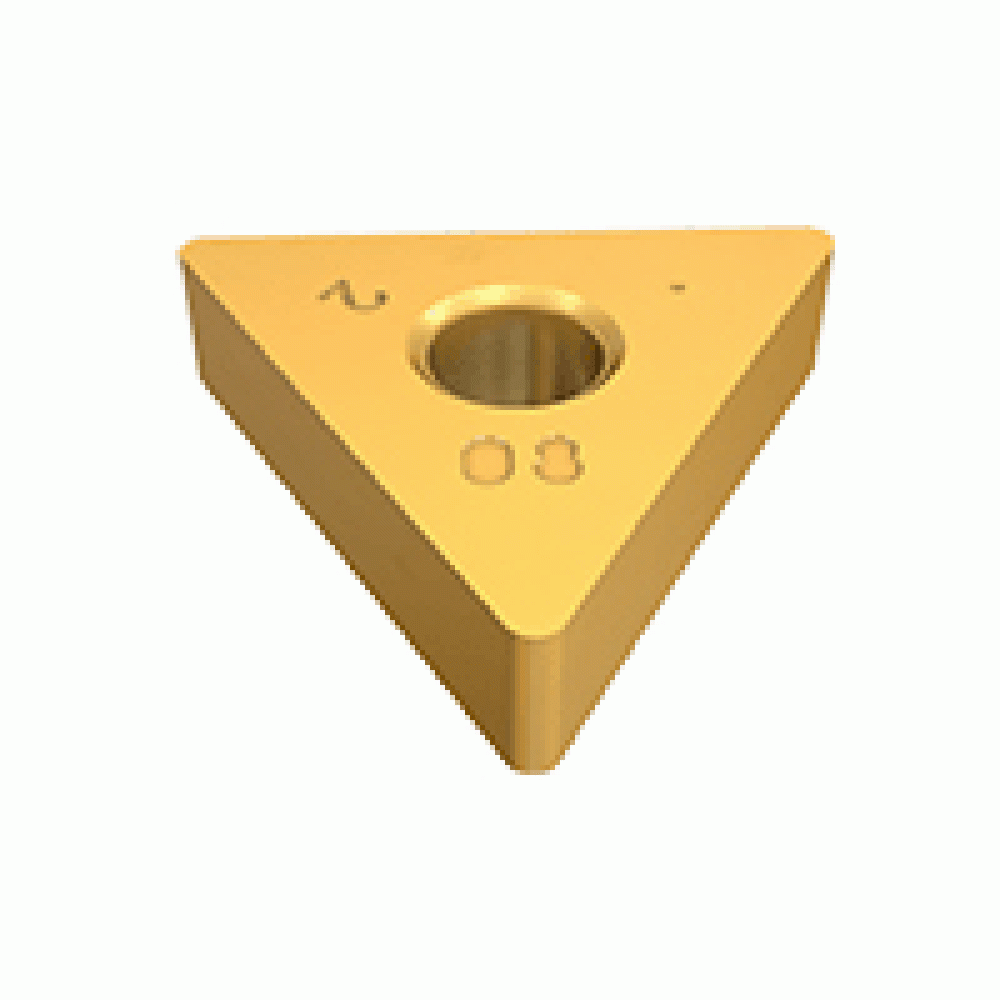

TNMA 332 IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.38
Included Angle60 degrees
Corner Radius (Inch)0.03
StyleTNMA
Thickness (Inch)0.19
Short DescriptionISCAR TNMA-332-IC20
Long DescriptionDouble-sided triangular inserts with no chipformer for short chipping materials such as cast iron
Unit Of MeasureImperial
ShapeTriangle
Insert Edge Length (Decimal)0.65
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.16
Minimum Feed (Decimal)0.002
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance AngleNegative
Machining ApplicationFinishing-Medium
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short DescriptionDouble-Sided Triangular Inserts with no Chipformer for Short Chipping Materials
Height0.39 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.30 OZ
Width1.57 Inch
Insert CoatingUncoated
APP1NameExt. 60° Triangle 60° Approach
FamilyNameTNMA
Max. Depth Of Cut0.1570
Insert StyleTNMA
Insert Shape60° Triangle
Insert Thickness0.1870
Weight (OZ)0.30335
Width (Inch)1.57
Cutting Edge MaterialCarbide
Measurement TypeInch
