Iscar

5501821

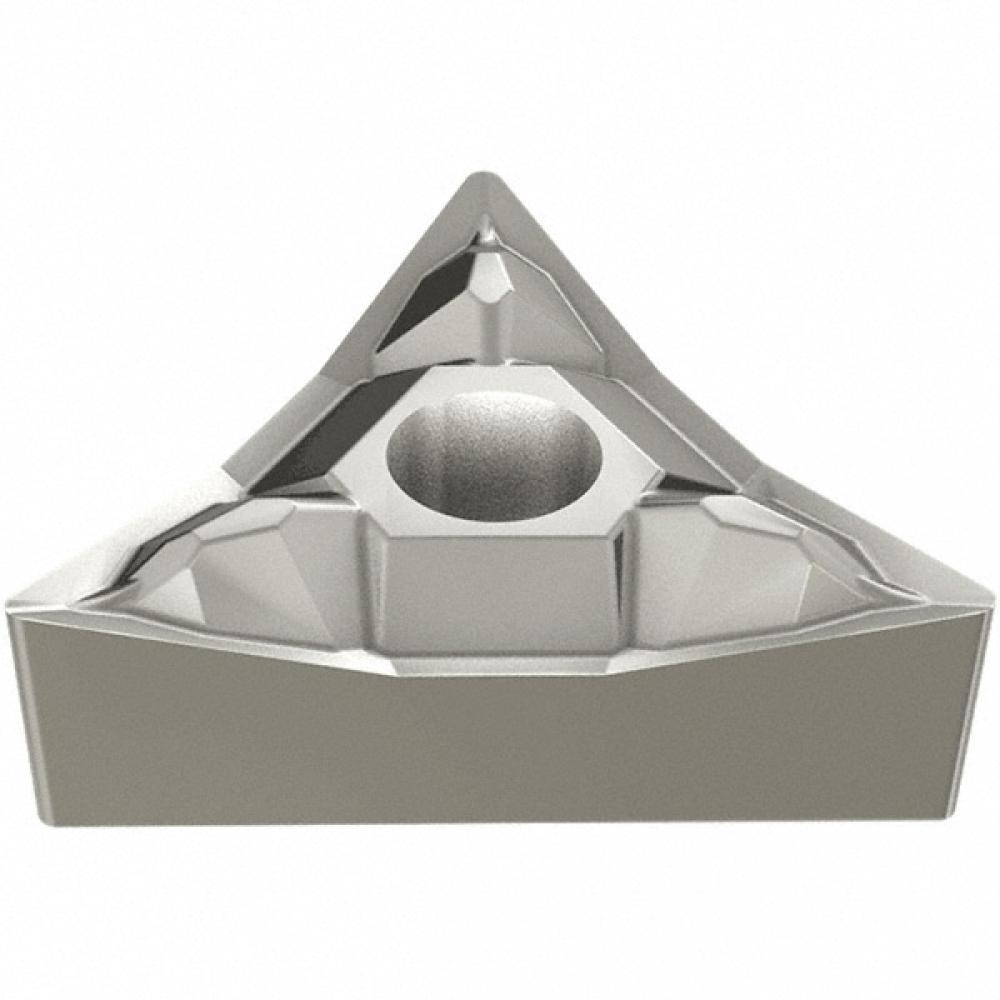

TNMS 332-12 IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.38
Included Angle60 degrees
Corner Radius (Inch)0.03
StyleTNMS
Thickness (Inch)0.19
Short DescriptionISCAR TNMS-332-12-IC20 INSERT
Long DescriptionTriangular single-sided inserts for soft and nonferrous materials. A special positive rake angle for moderate cutting forces.
Unit Of MeasureImperial
ShapeTriangle
Insert Edge Length (Decimal)0.65
Minimum Depth of Cut (Decimal)0.02
Maximum Depth of Cut (Decimal)0.12
Minimum Feed (Decimal)0.0039
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance AngleNegative
Machining ApplicationFinishing-Medium
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short DescriptionTriangular Single-Sided Inserts for Soft and Nonferrous Materials
Height0.39 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.26 OZ
Width1.57 Inch
Insert CoatingUncoated
APP1NameExt. 60° Triangle 60° Approach
FamilyNameTNMS-12
Max. Depth Of Cut0.1180
Insert StyleTNMS
Insert Shape60° Triangle
Insert Thickness0.1870
Weight (OZ)0.2575
Width (Inch)1.57
Cutting Edge MaterialCarbide
Measurement TypeInch
