Iscar

5502412

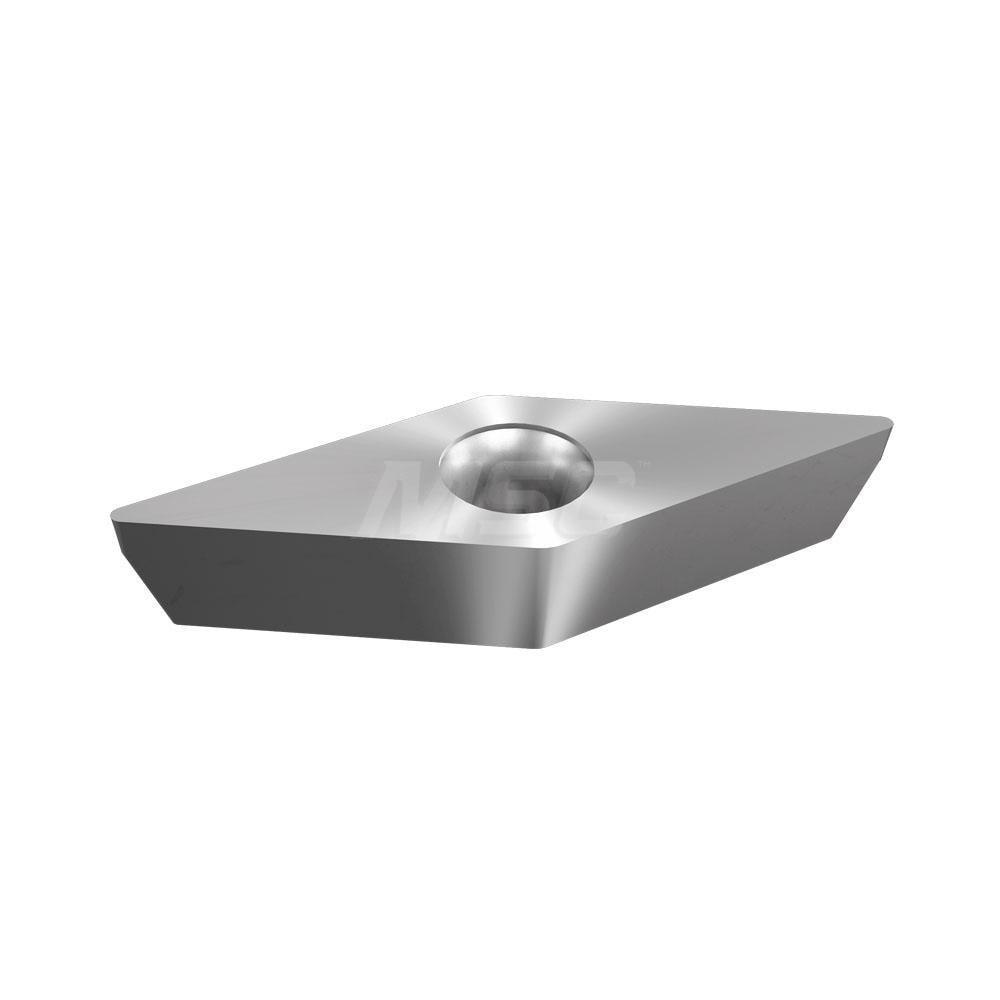

VCMW 332 IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.38
Included Angle35 degrees
Corner Radius (Inch)0.03
StyleVCMW
Thickness (Inch)0.19
Short DescriptionVCMW-332-IC20 ISCAR TURNING INSERTS - UNCOATED
Long Description35° rhombic inserts with a 7° positive flank for short chipping materials such as cast iron.
Unit Of MeasureImperial
ShapeDiamond
Insert Edge Length (Decimal)0.65
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.2
Minimum Feed (Decimal)0.002
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance Angle7 deg Positive
Machining ApplicationFinishing-Medium
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short Description35° Rhombic Inserts with a 7° Positive Flank for Short Chipping Materials such as Cast Iron
Height0.55 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.39 OZ
Width2.20 Inch
Insert CoatingUncoated
APP1NameExt. 35° Diamond 112° Approach
FamilyNameVCMW
Max. Depth Of Cut0.1970
Insert StyleVCMW
Insert Shape35° Diamond
Insert Thickness0.1870
Weight (OZ)0.38801
Width (Inch)2.2
Cutting Edge MaterialCarbide
Measurement TypeInch
